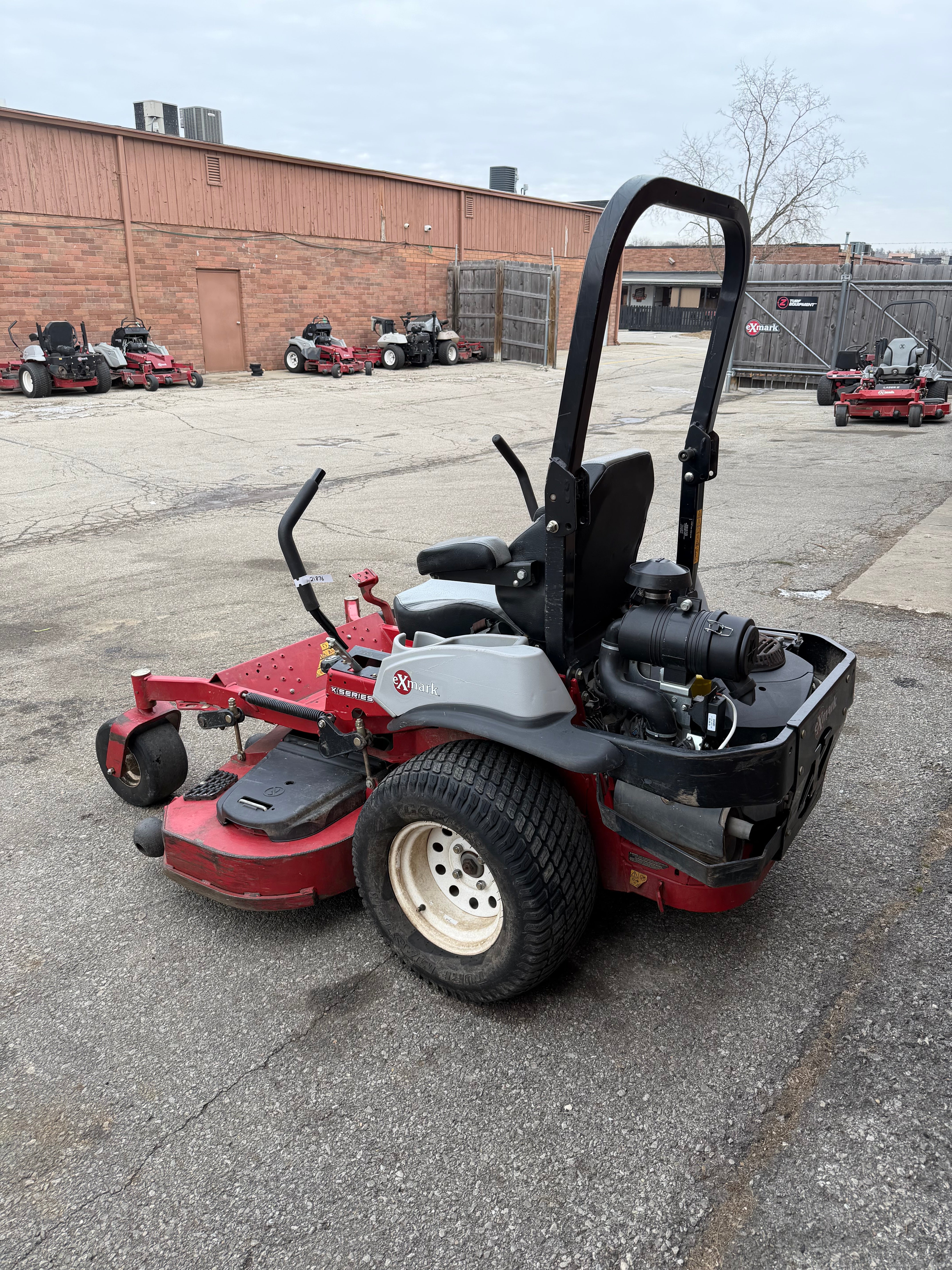

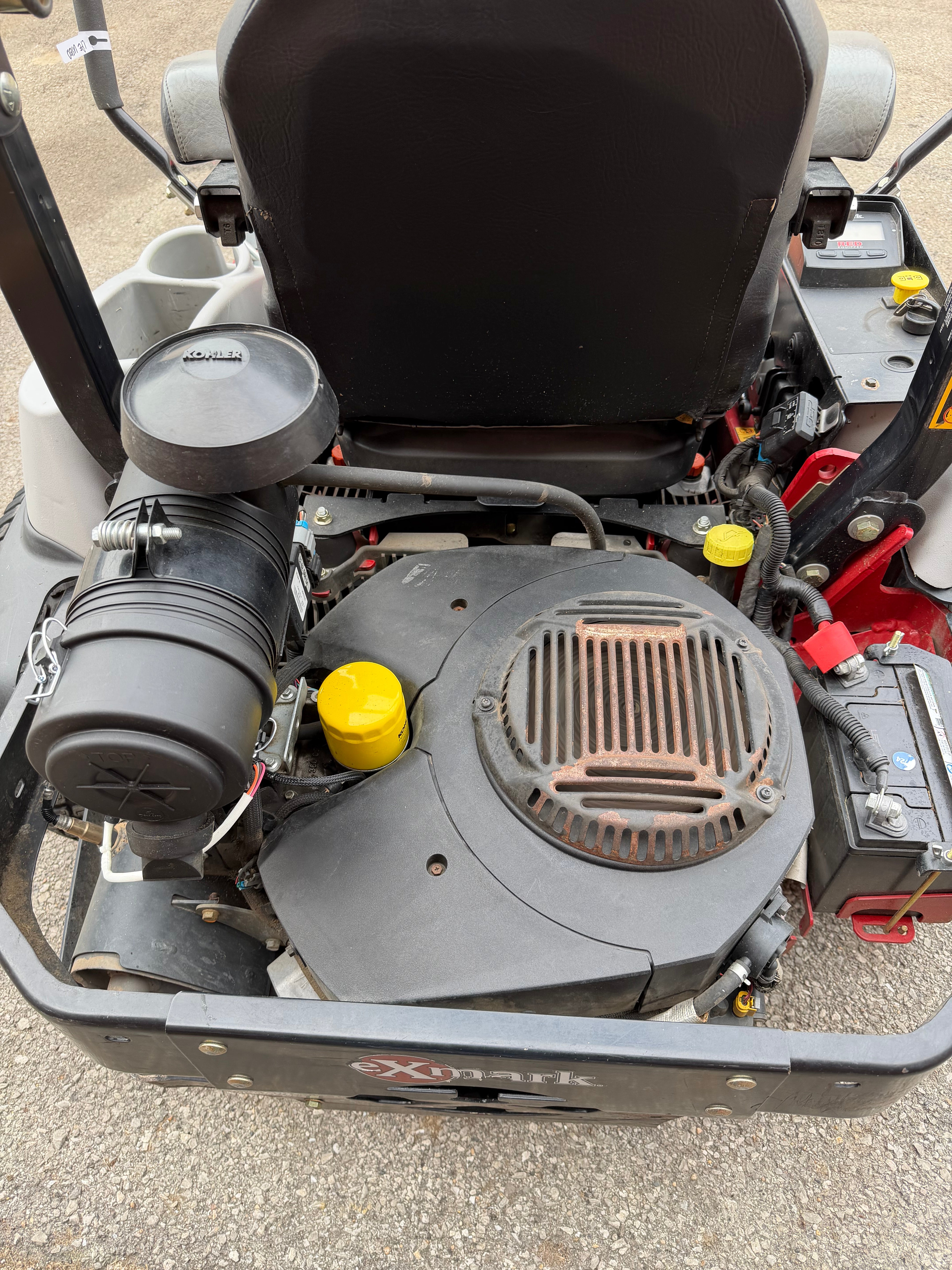

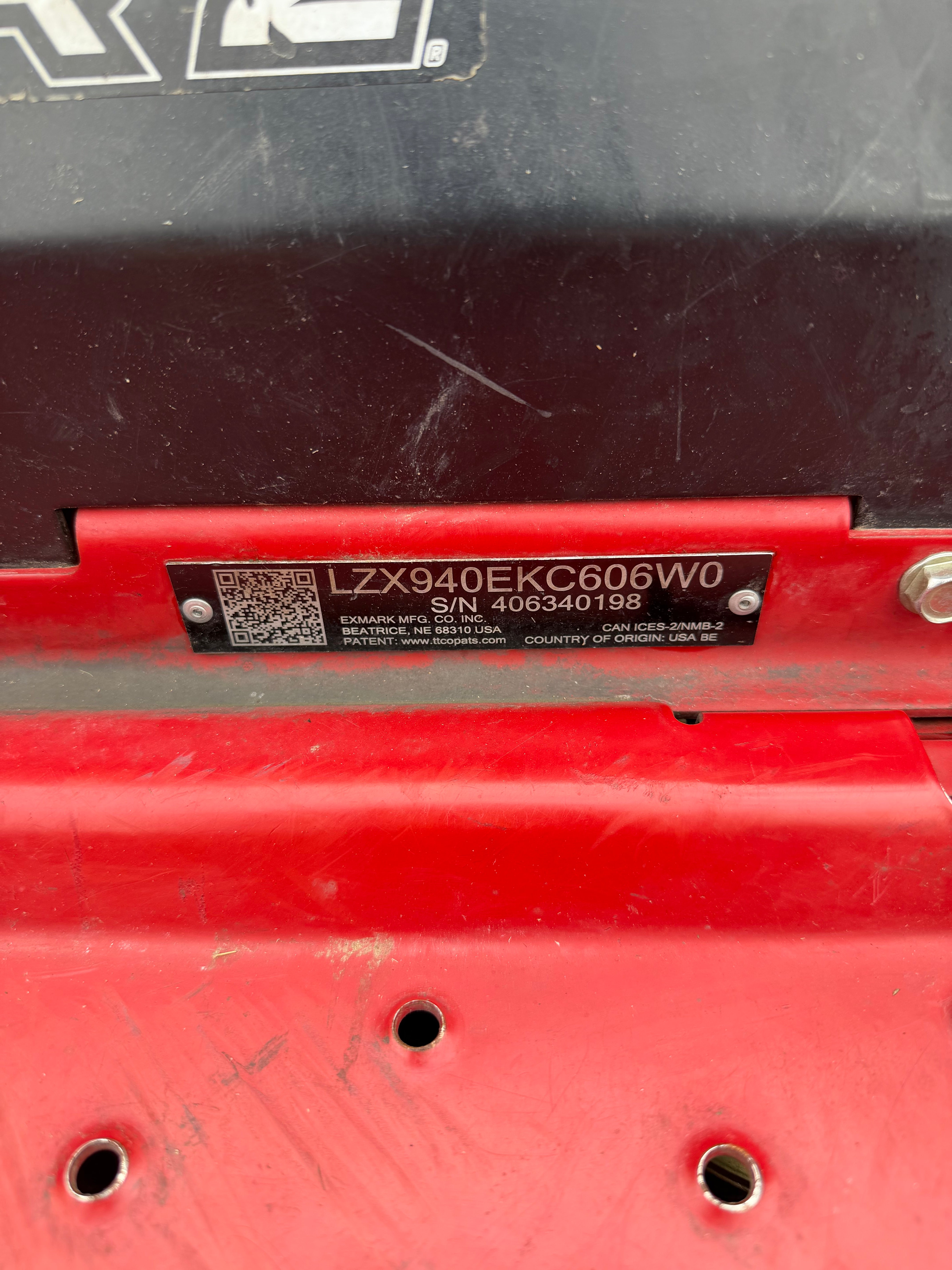

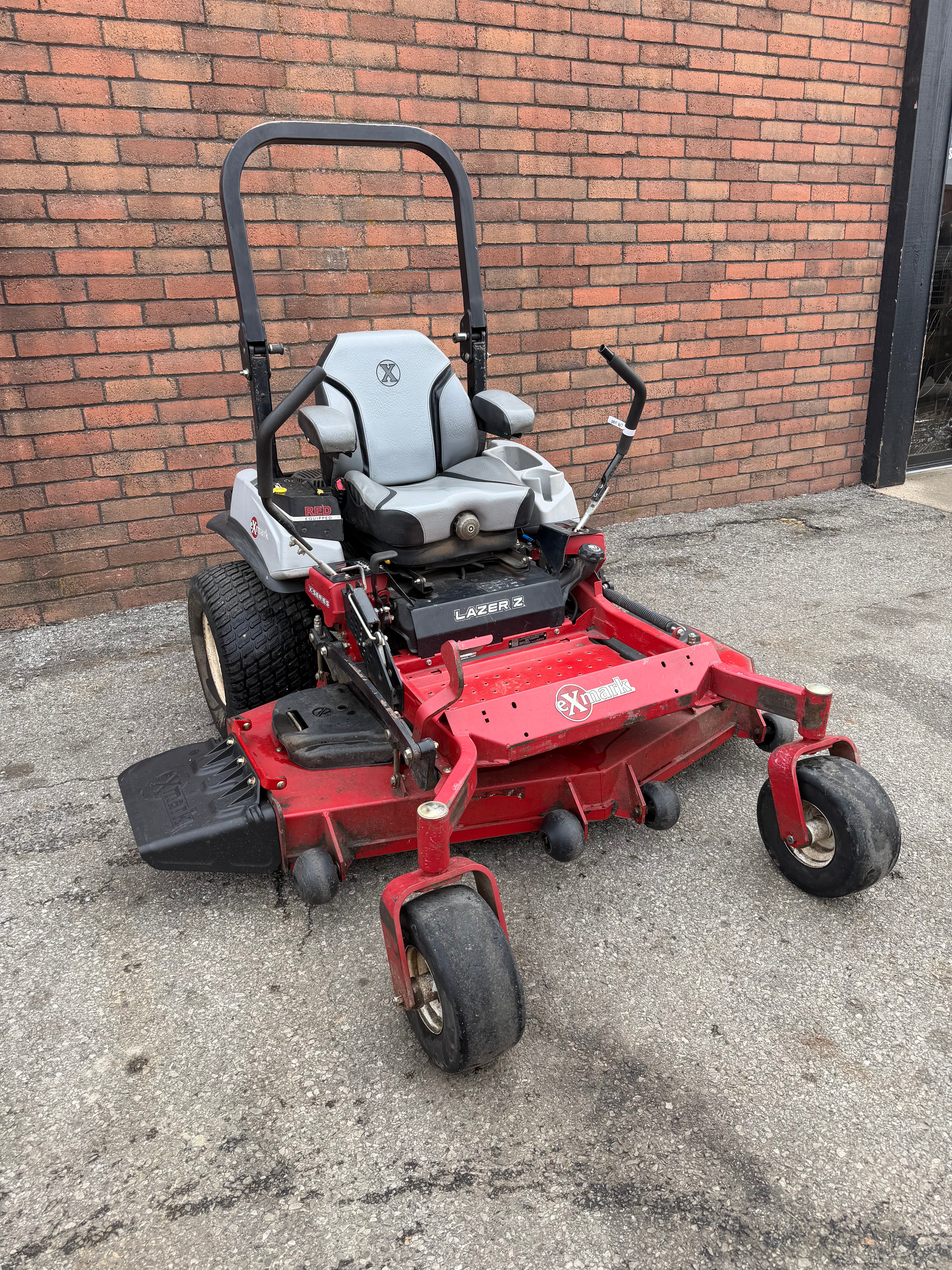

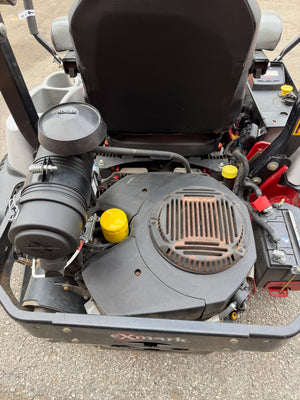

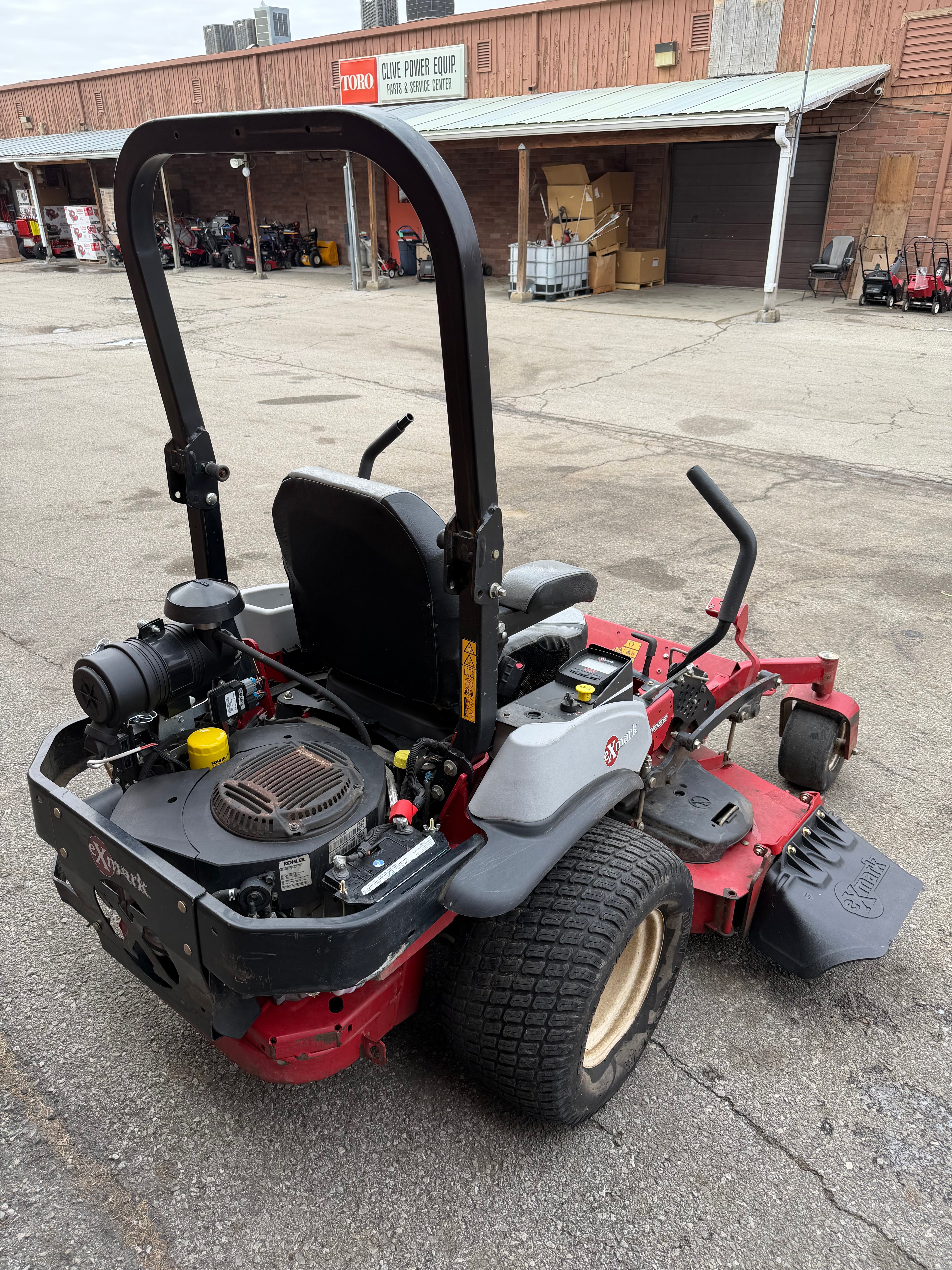

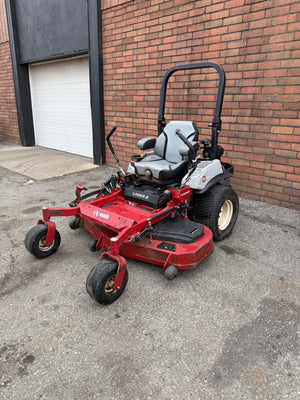

Used Lazer Z X-Series 35 HP* Koh EFI EGov ECV940 w/60" UltraCut Series 6 Deck

Categories : Used Equipment
$9,000.00
GET MORE INFO
×
Quantity
Add to wishlist
Add to compare

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Specifications

Air Filter

Heavy-duty canister air filtration system

Blade Spindles

No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 30mm (1.18") diameter spindle shaft and splined blade driver.

Blade Tip Speed

Approximately 18,500 fpm.

Blades

3 Blades at 20.50" Length

Carb Compliant

No

Caster Forks

.50" thick caster yoke arms.

Cutting Heights

1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator’s seat.

Deck Construction

10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight.

Deck Lift

Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.

Deck Style

Floating Deck

Deck Style Description

Full-floating UltraCut Series 6 with heavy-duty spindle. Side discharge standard with the option to bag or mulch.

Drive

Hydro-Drive

Drive Description

Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, shock valve, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 16 cc pumps and 17.1 cubic inch motors.

Drive Tires

24 x 12.0-12, 4-ply Turf Master®

Drive Wheel Release

Allows unit movement without engine running.

Electrical

12-volt battery with 25-amp alternator.

Front Caster Tires

13 x 6.5-6, smooth-tread, semi-pneumatic.

Fuel Capacity

12-gallon (45.4-L), single fuel tank with single fill location.

Fuel Indicator

Yes - electronic Sender

Fuel System

Electronic Fuel Injected

Height

70 in. (177.8 cm)

Length

86.1 in. (218.7 cm)

Onboard Intelligence

RED Technology

Parking Brake

Lever-actuated disc brake.

ROPS

2-post foldable ROPS standard with seat belt and latch.

Safety Package

Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.

Seat

Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.

Speed

Infinitely variable speed selection from 0–11.5 mph (18.5 kmph) forward, 0–6.0 mph (11.3 kmph) reverse

Standard Features

Engine hour meter and cup holder

Starter

Electric

Steering Control

Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
