Description:

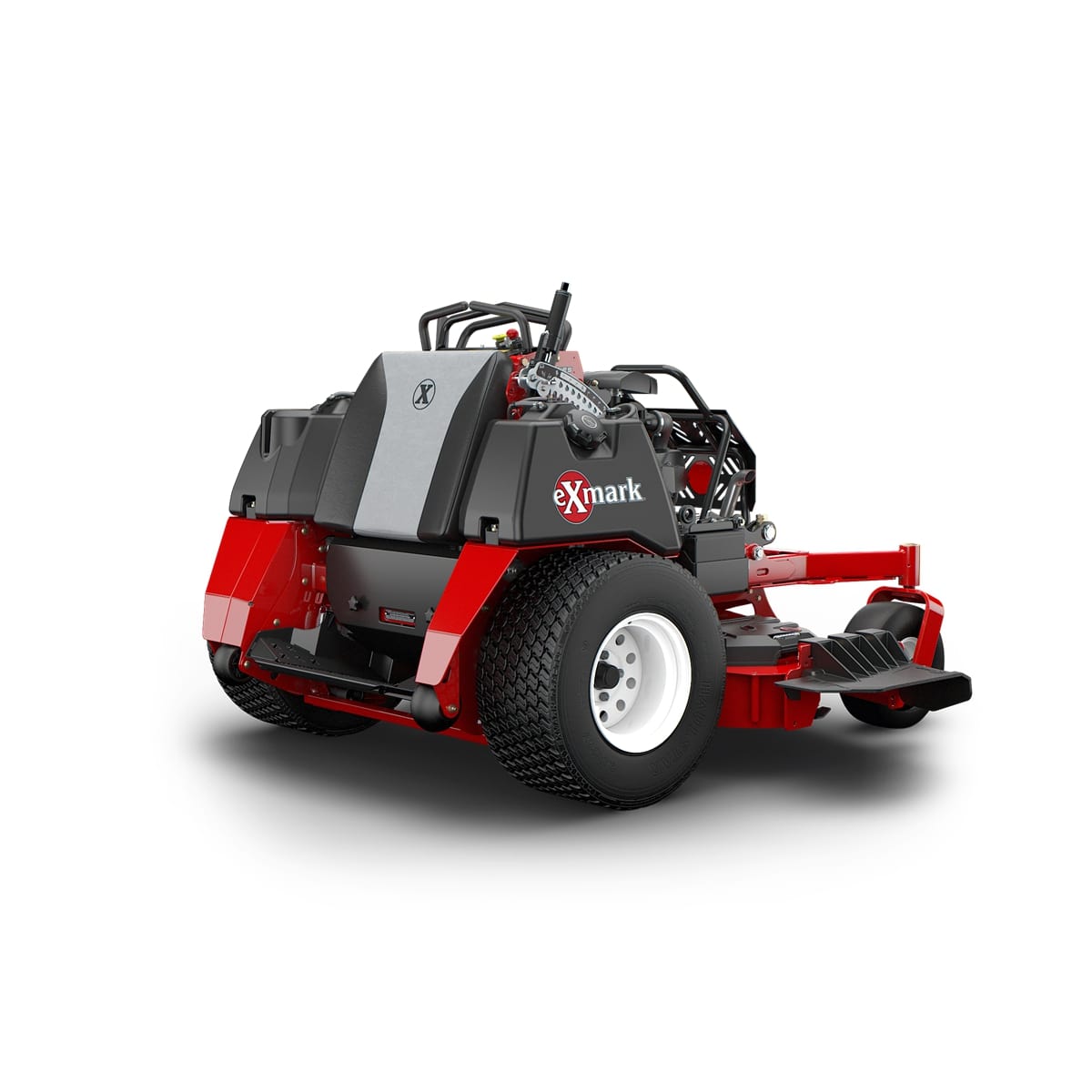

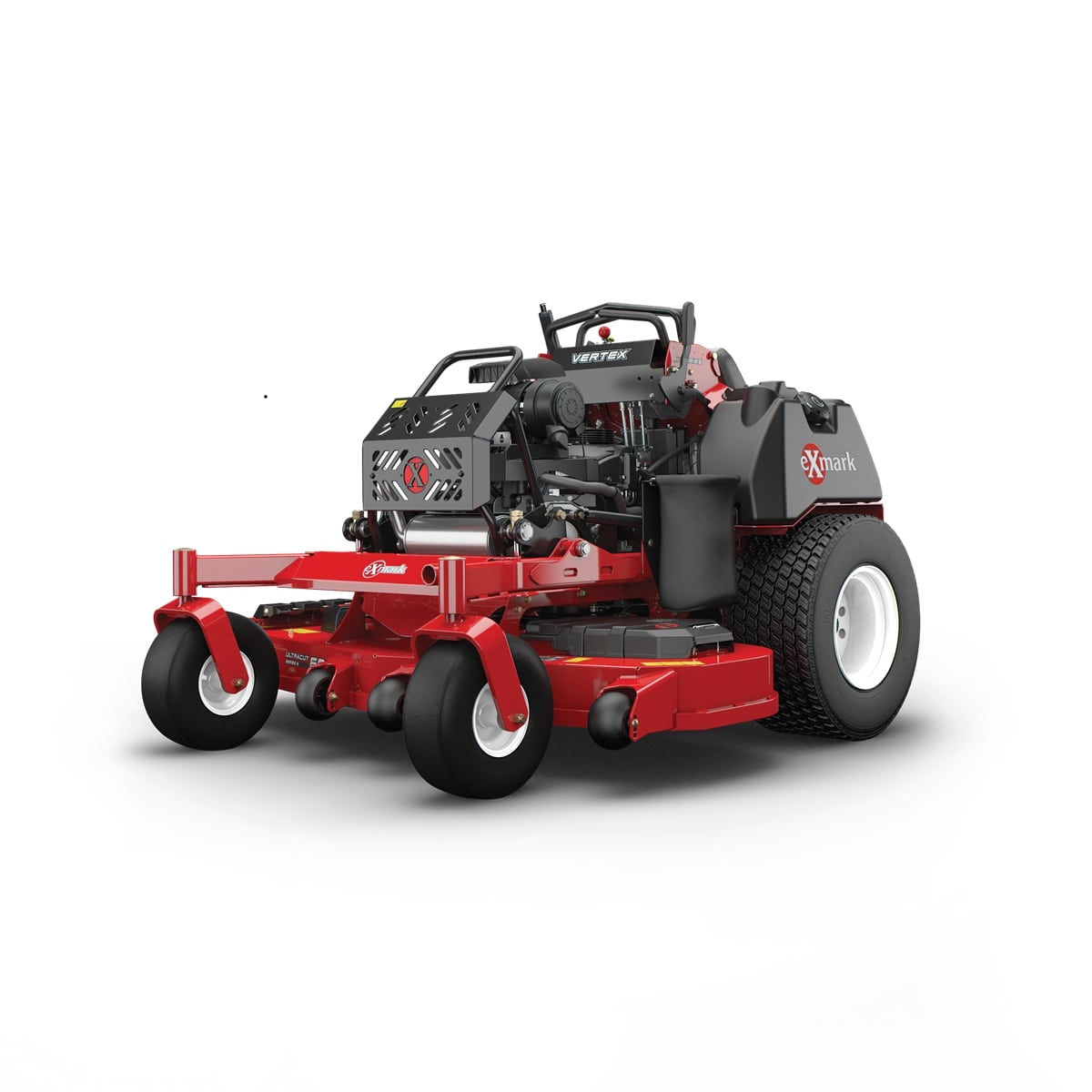

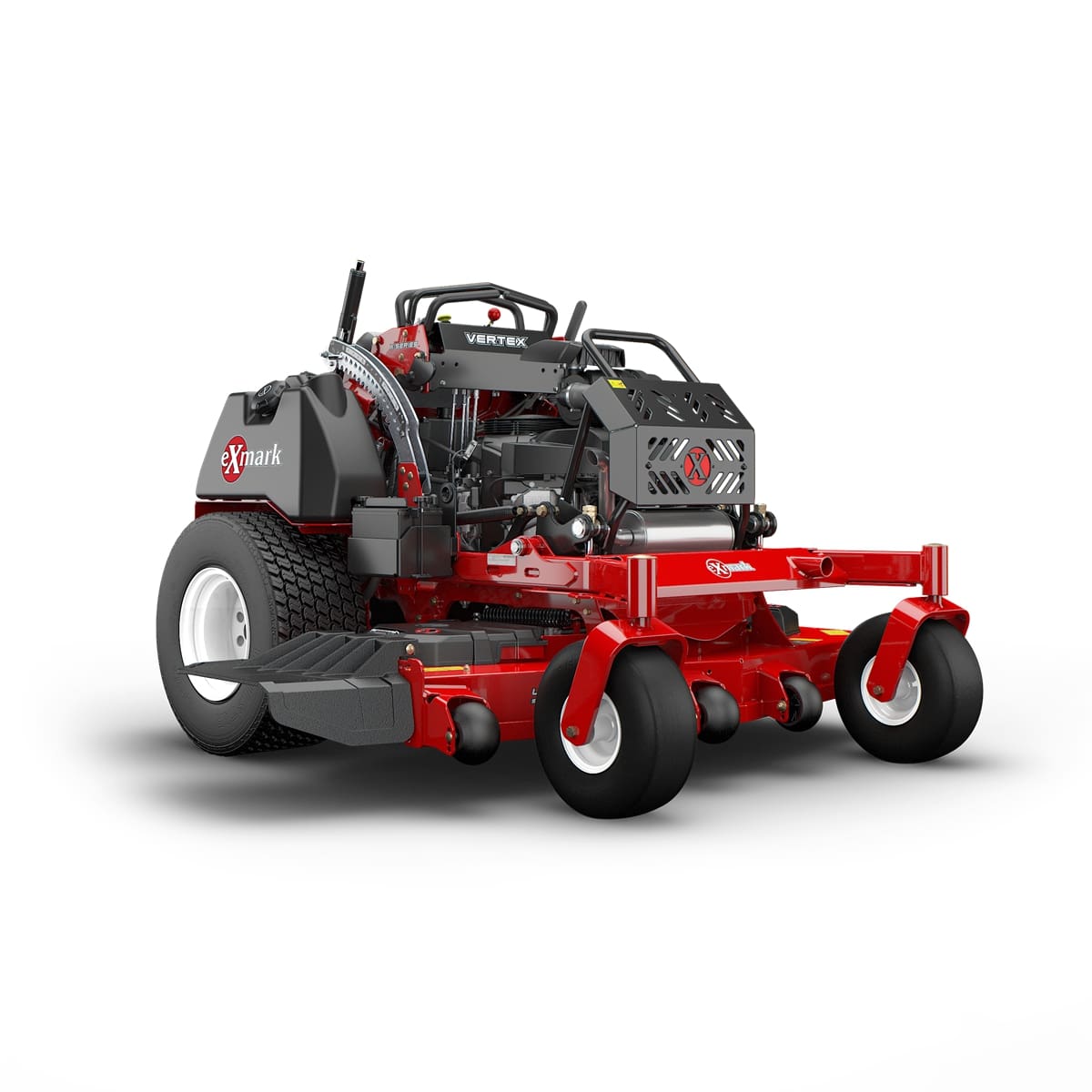

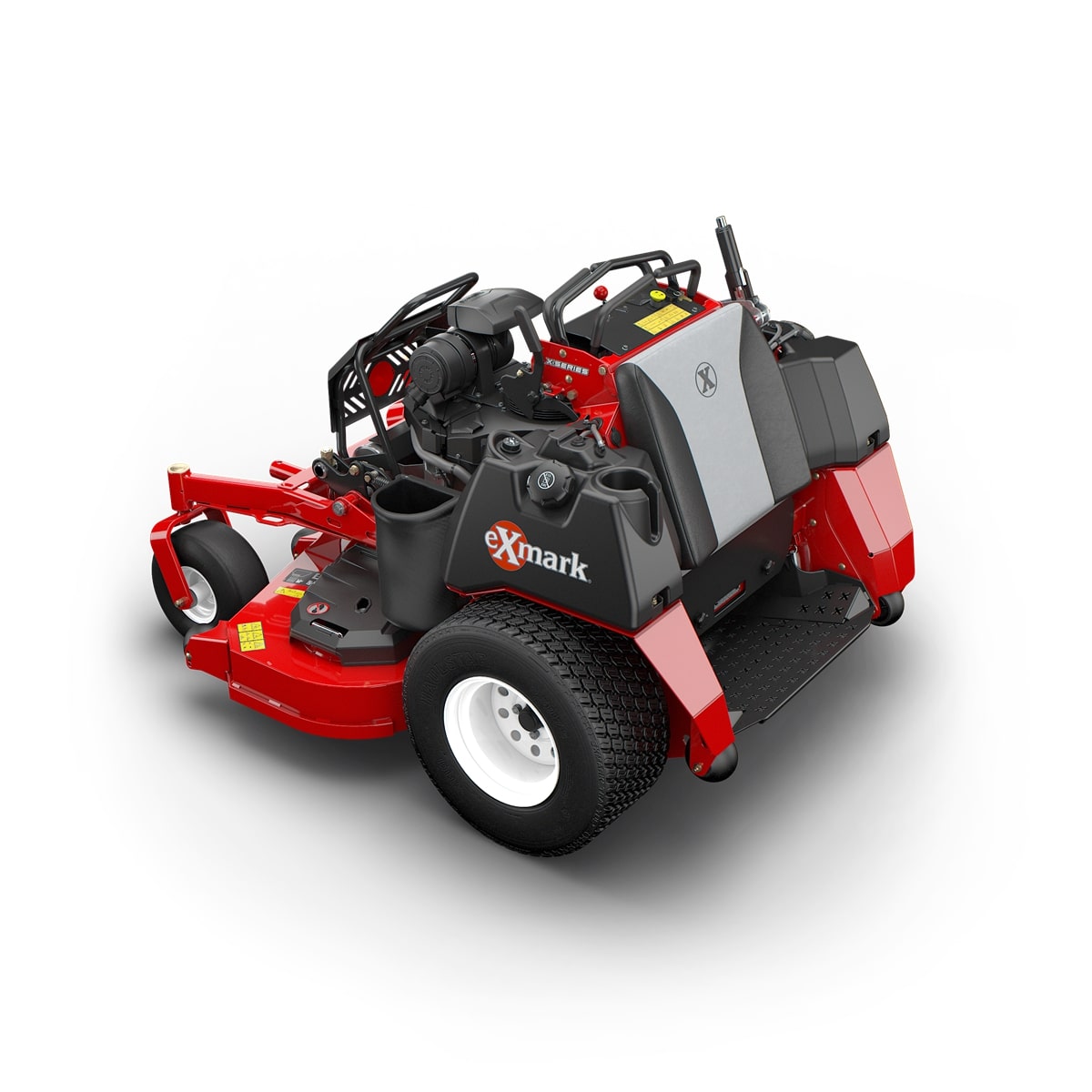

Designed to raise the bar for stand-on mower performance and productivity, Vertex X-Series uses the same formed and welded tubular steel frame and heavy-duty 15-inch casters as our premier Lazer Z zero-turn riding mowers. With carbureted Kawasaki FX1000 engines, you'll have the power to finish jobs faster, with a better quality of cut thanks to our unmatched UltraCut cutting decks. One look and it's easy to see why the Vertex X-Series is the next generation of stand-on mowers.

Specifications:

Power & Engine

• Engine Brand: Kawasaki
• Engine Model: FX1000V
• Engine Series: V-Twin
• Engine Displacement: 999 cc
• Engine Speed: 3,600 rpm
• Fuel Type: Gasoline – Electronic Fuel Injected (EFI)
• Fuel Capacity: 14-gallon (dual tanks – RH and LH side)
• Fuel Indicator: Float gauge
• Air Filter: Heavy-duty canister air filtration system
• Carb Compliant: No

Transmission & Drive

• Transmission Brand: Hydro-Gear
• Transmission: Hydrostatic
• Transmission Speeds: Infinitely Variable
• Speed Range:
• Forward: 0–12.0 mph
• Reverse: 0–5.0 mph
• Drive System: Hydro-Drive
• Drive Description:
• Two Hydro-Gear 16 cc pumps powering two Hydro-Gear 17.8 in³ motors
• Drive Wheel Release: Allows movement without engine running

Deck System

• Deck Style: Floating Deck
• Deck Series: UltraCut Series 6
• Deck Width / Cutting Width: 60"
• Deck Description:
• Side discharge standard, molded discharge chute; bagging and mulching optional
• Deck Construction:
• 10-gauge top, formed and continuously seam welded
• 7-gauge side skirt
• Blade Tip Speed: Approx. 18,500 fpm
• Blades: 3 blades at 20.50" length each
• Cutting Heights:
• 1.5" to 5.0" (in 0.25" increments)
• Deck Lift: Single-point height-of-cut (HOC) with mechanical lift-assist springs

Spindles

• Blade Spindles:
• Sealed, non-greasable, no-maintenance
• 7.75" diameter cutter housing
• 1.0" spindle shaft
• 1.75" diameter splined blade driver

Chassis, Comfort & Safety

• Tractor Frame:
• Welded heavy-duty 1.5" x 3.0" tubular steel
• Seat: Not specified, but includes standard comfort features
• Steering Control:
• Twin levers with center fixed reference bar for control in both directions
• Cup Holder: Yes
• Electrical System:
• 12-volt battery
• 30-amp alternator
• Standard Features: Enhanced engine hour meter

Wheels, Tires & Brakes

• Drive Tires: 24 x 12-12 Hoosier Grass Master
• Front Caster Tires: 15 x 6.0-6 smooth tread, semi-pneumatic, tapered roller bearings
• Parking Brake: Lever-actuated internal motor brake

PTO & Safety

• PTO Engagement:
• Warner electromagnetic clutch – 250 ft-lb
• Safety Package:
• Operator Presence Controls (OPC)
• Safety interlock system indicators

Dimensions

• Width: 72.87 in
• Length: 73.36 in
• Height: 48.75 in
• Curb Weight: 1,310 lbs
