Description:

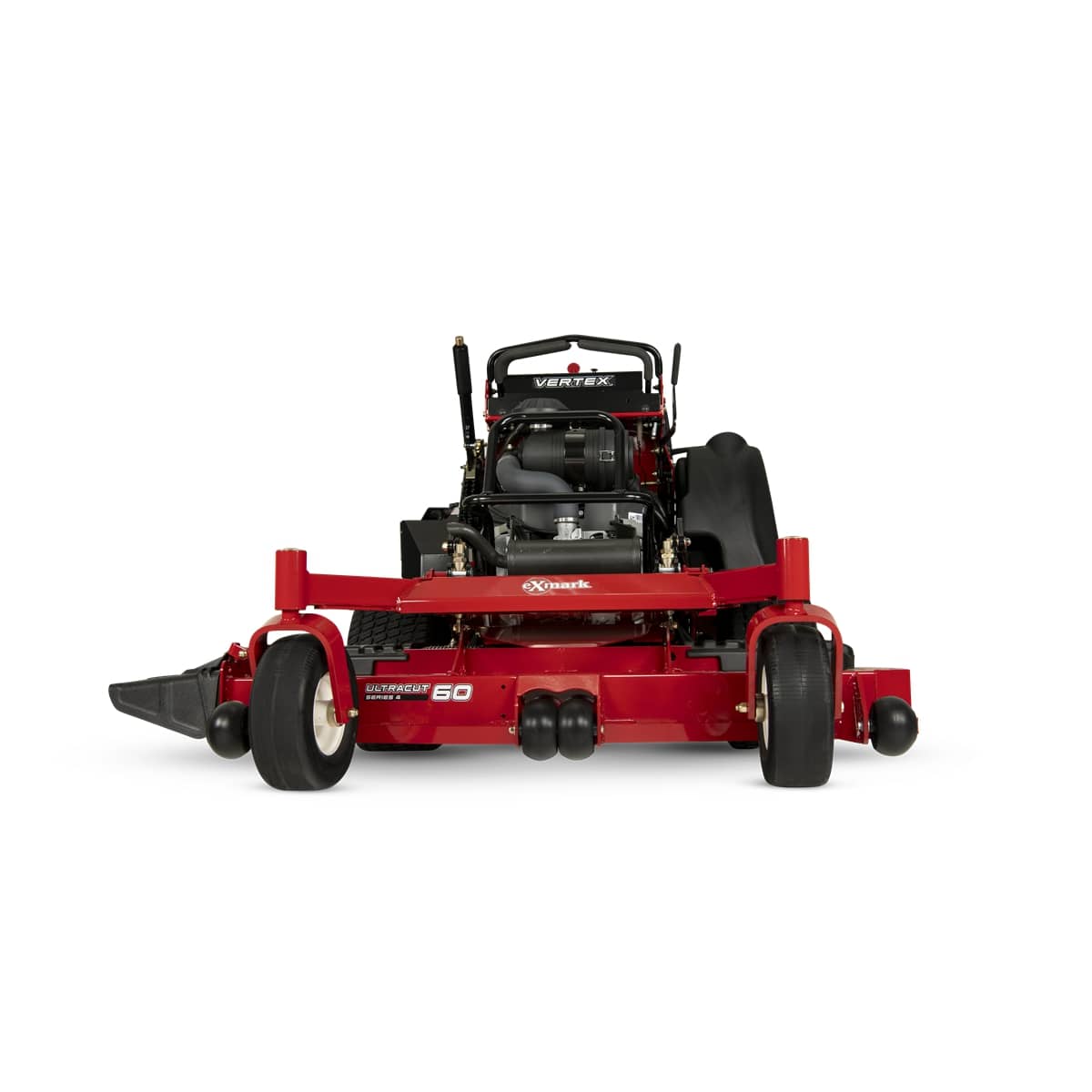

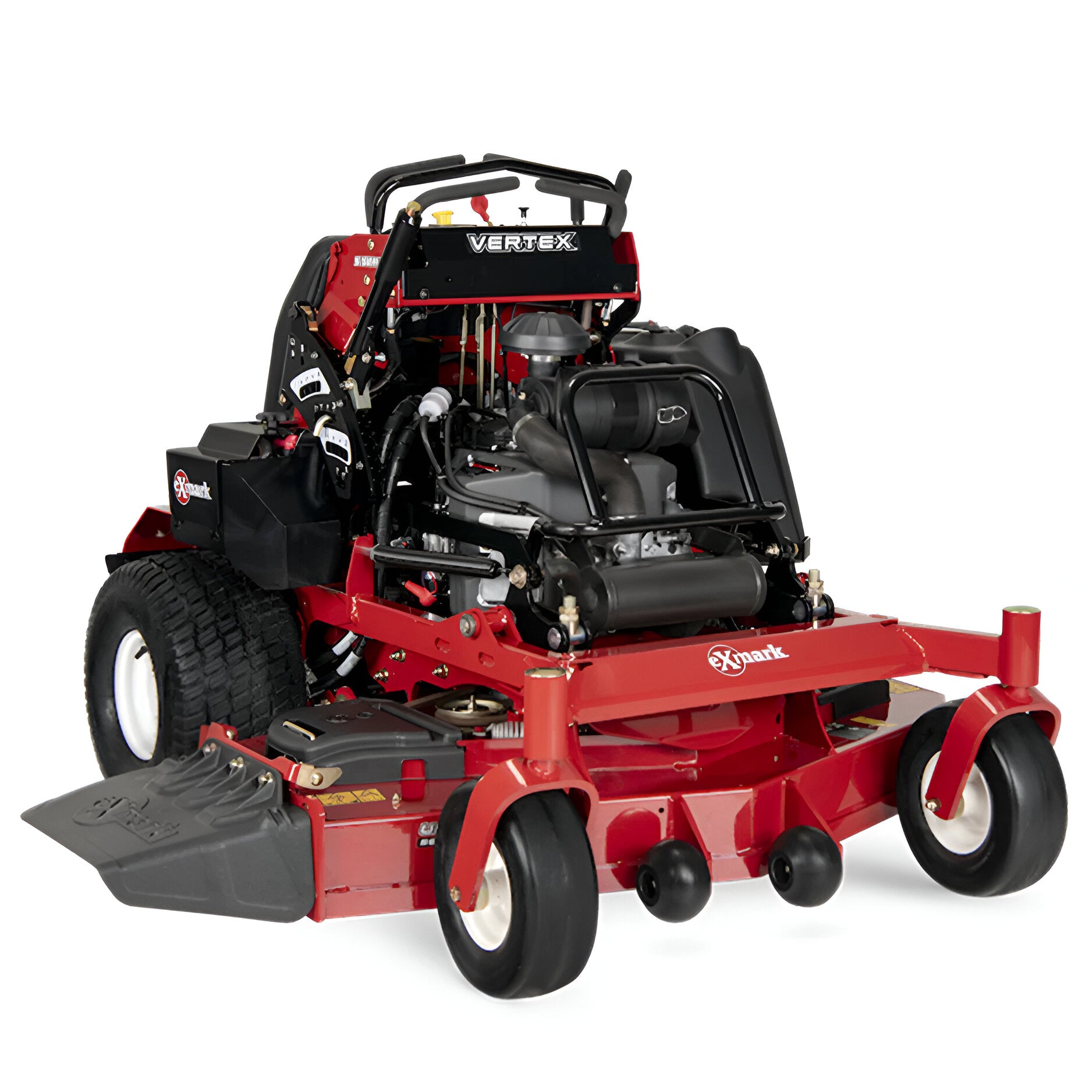

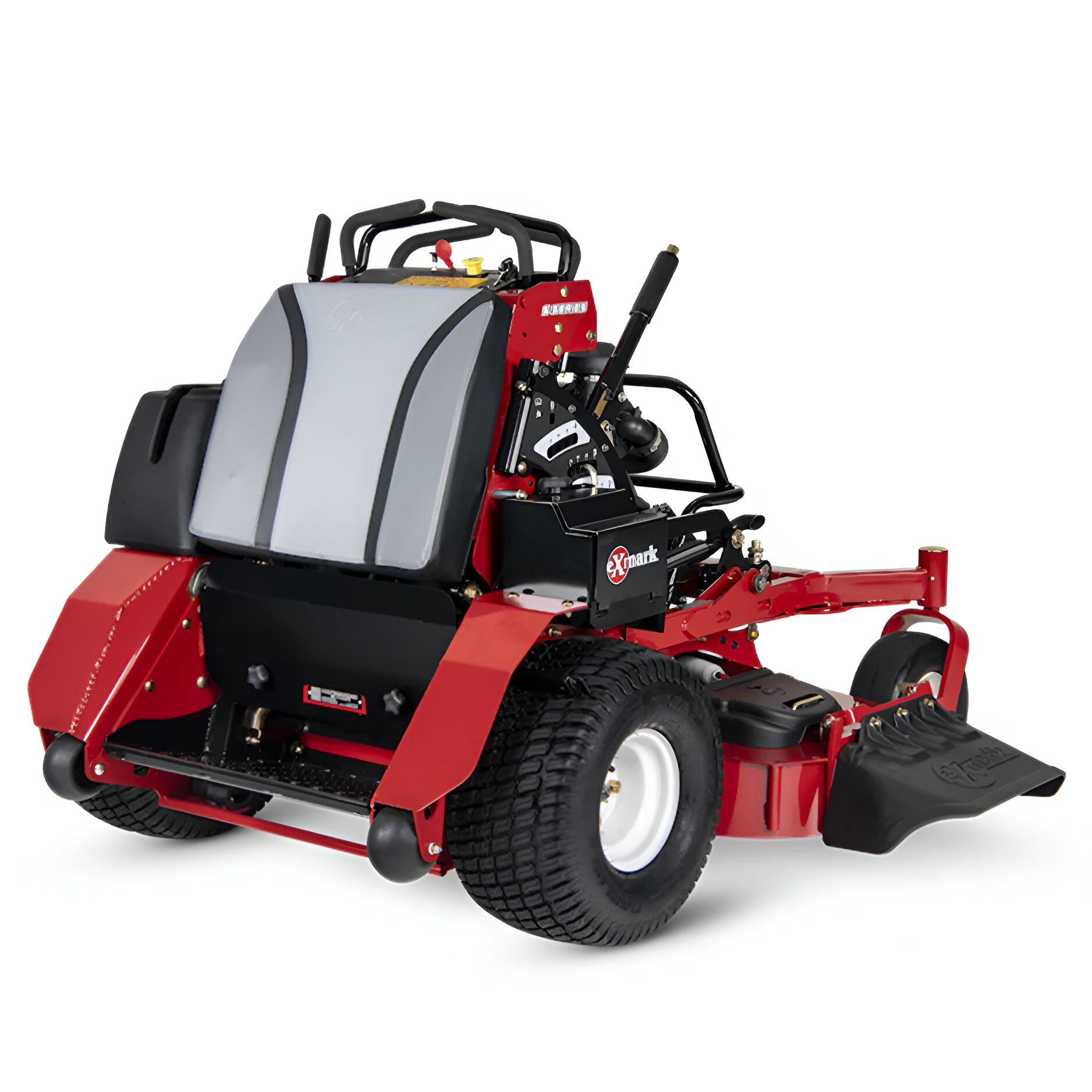

The Vertex S-Series stand-on zero-turn mowers are ready to take your productivity and profitability to the next level. With a design that centralizes mass low in the mower chassis, Vertex is ultra-maneuverable, yet stable and easy to control. The control panel is ergonomically designed and centrally located to improve operator comfort. Exmark's proven hydro drive system delivers ground speeds of up to 8.5mph, enabling Vertex to quickly finish large jobs. Built with a Kawasaki V-Twin or Kohler EFI engine to increase fuel efficiency so you can stay out in the field longer. Choose from 48-, 52-, or 60-inch UltraCut Series 4 side-discharge cutting decks, featuring easy rake adjustment and anti-scalp rollers, for an Exmark signature finish cut quality every time.

Looking for a more compact stand-on mower? Check out the Vertex E-Series.

Specifications:

• UPC: 193308221816
• Engine Brand: Kawasaki
• Engine Model: FX730V
• Engine Displacement: 725 cc
• Engine Series: V-Twin
• Fuel System: Carbureted
• Engine Speed: 3,750 rpm
• Starter Type: Electric
• Fuel Type: Gasoline
• Fuel Capacity: 8-gallon single tank (LH side)
• Air Filter: Heavy-duty canister air filtration system
• Carb Compliant: No

Transmission & Drive

• Transmission Type: Hydrostatic
• Transmission Brand: Hydro-Gear
• Drive System: Hydro-Drive
• Drive Description: Two Hydro-Gear 12 cc pumps powering two Parker 14.5 cu in motors
• Transmission Speeds: Infinitely Variable
• Speed:
• Forward: 0–8.5 mph
• PTO Engagement: Warner 175 ft-lb clutch
• Parking Brake: Lever-actuated bar brake
• Drive Wheel Release: Allows movement without engine running

Chassis & Frame

• Tractor Frame: Welded, heavy-duty 1.5" x 2.5" tubular steel
• Steering Control: Twin levers with center fixed reference bar
• Cup Holder: Yes
• Electrical: 12V battery with 15-amp alternator
• Standard Features: Enhanced Engine Hour Meter

Deck System

• Deck Style: Floating Deck
• Deck Style Description:
• Full-floating UltraCut Series 4
• Side discharge standard
• Molded discharge chute
• Option to bag or mulch
• Deck Width: 60"
• Deck Construction:
• 10-gauge top, formed and continuously seam welded
• 7-gauge side skirt
• Cutting Heights: 1.5" to 5.0" (adjustable in 0.25" increments)
• Deck Lift: Single-point HOC with mechanical lift-assist springs
• Blades: 3 blades at 20.5" each
• Blade Tip Speed: Approx. 18,500 fpm
• Blade Spindles:
• No maintenance, sealed and non-greasable
• 7.75" cutter housing
• 1.75" splined blade driver
• 1.0" spindle shaft

Tires

• Front Caster Tires: 13 x 5.0-6, smooth-tread, semipneumatic with tapered roller bearings
• Drive Tires: 22 x 10.0-8 Carlisle Turf Master

Dimensions & Weight

• Length: 68.24"
• Width: 72.87"
• Height: 49.2"
• Curb Weight: 978 lbs

Safety

• Safety Package: Operator Presence Controls (OPC) with safety interlock system indicators
