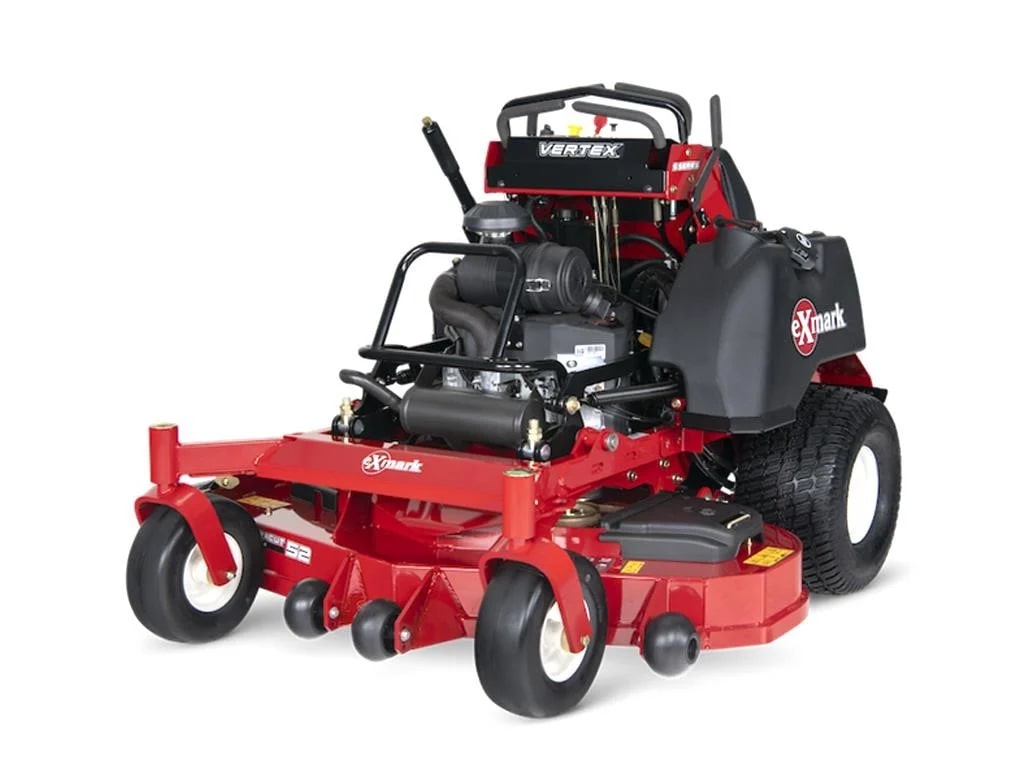

Exmark VXE600GKA32300 Stand On

Description:

When you need a more productive mower for small to mid-size properties, Vertex E-Series is the right choice. With the operator placed comfortably on a suspended platform between the drive wheels, Vertex E-Series is designed to easily clear gates that would stop larger machines in their tracks. And with speeds up to 7.5mph forward, you’ll finish jobs faster, with less fatigue, than you would with a walk-behind mower. Your customers will love Exmark’s signature cut quality, and you’ll love how fast you got the job done.

Specification:

Equipment

• UPC: 193308241395
• Steering Control: Twin levers with adjustable front reference bar to modify forward ground speed.
• Front Caster Tires: 9 x 4.50-5, smooth-tread, semipneumatic tires with sealed ball bearings.
• Drive Tires: 21x7.00-10 Kenda K506.
• Parking Brake: Lever-actuated bar brake.
• Tractor Frame: Welded, heavy-duty 1.5" x 3" tubular steel.
• Blade Spindles: No maintenance, sealed and nongreasable spindles; 7.75" diameter cutter housing with 1.75" diameter splined blade driver; 1.0"-diameter spindle shaft.
• Electrical System: 12-volt battery with 15-amp alternator.
• Cup Holder: No
• Standard Features: Engine Hour Meter

Power Components

• Engine Brand: Kawasaki
• Engine Model: FS600V
• Engine Displacement: 603 cc
• Engine Series: V-Twin
• Fuel System: Carbureted
• Speed: Infinitely variable speed selection, 0–7.5 mph (12.1 kmph) forward, 0–4.0 mph (6.4 kmph) reverse
• Engine Speed: 3,600 rpm
• Engine Spec: _S36
• Air Filter: Standard Engine Manufacturer's air filter
• Fuel Capacity: 5-gallon (18.9-L), single fuel tank with single fill location

Drive System:

• Drive Description: Two Hydro Gear 10 cc pumps powering two Parker 12 cubic inch motors
• PTO Engagement: Warner 105 ft-lb clutch
• Fuel Type: Gas Carbureted
• Drive System: Hydro-Drive
• Drive Wheel Release: Allows unit movement without engine running
• Fuel Indicator: Yes - Float Gauge

Deck and Operational Features:

• Deck Lift: Single point Height of Cut (HOC)
• Carb Compliant: Yes
• Safety Package: Operator Presence Controls (OPC) with safety interlock system indicators

Dimensions:

• Width: 44.9 inches
• Height: 47.3 inches
• Length: 58.103 inches
• Curb Weight: 702 lbs
