Description:

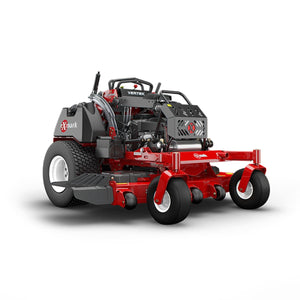

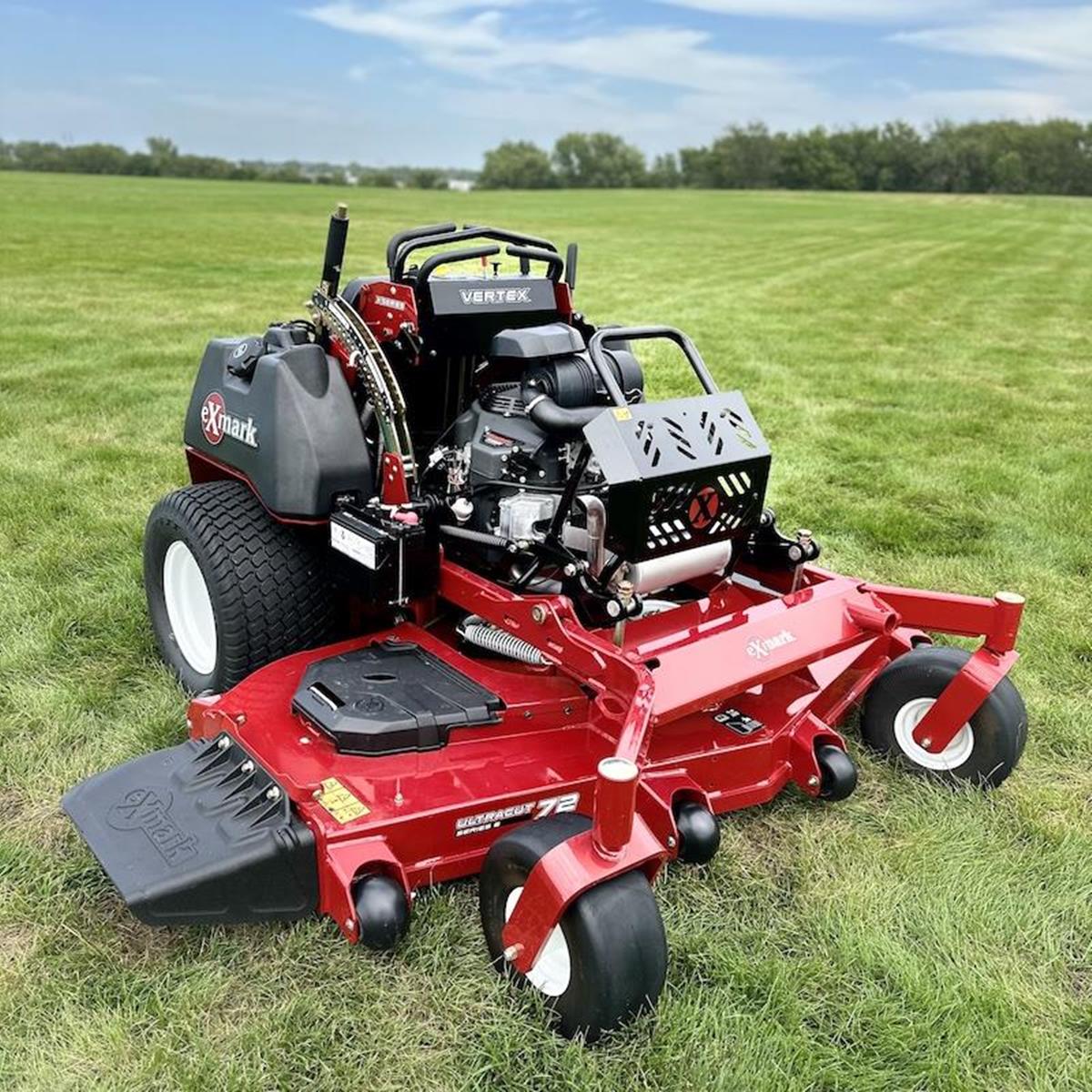

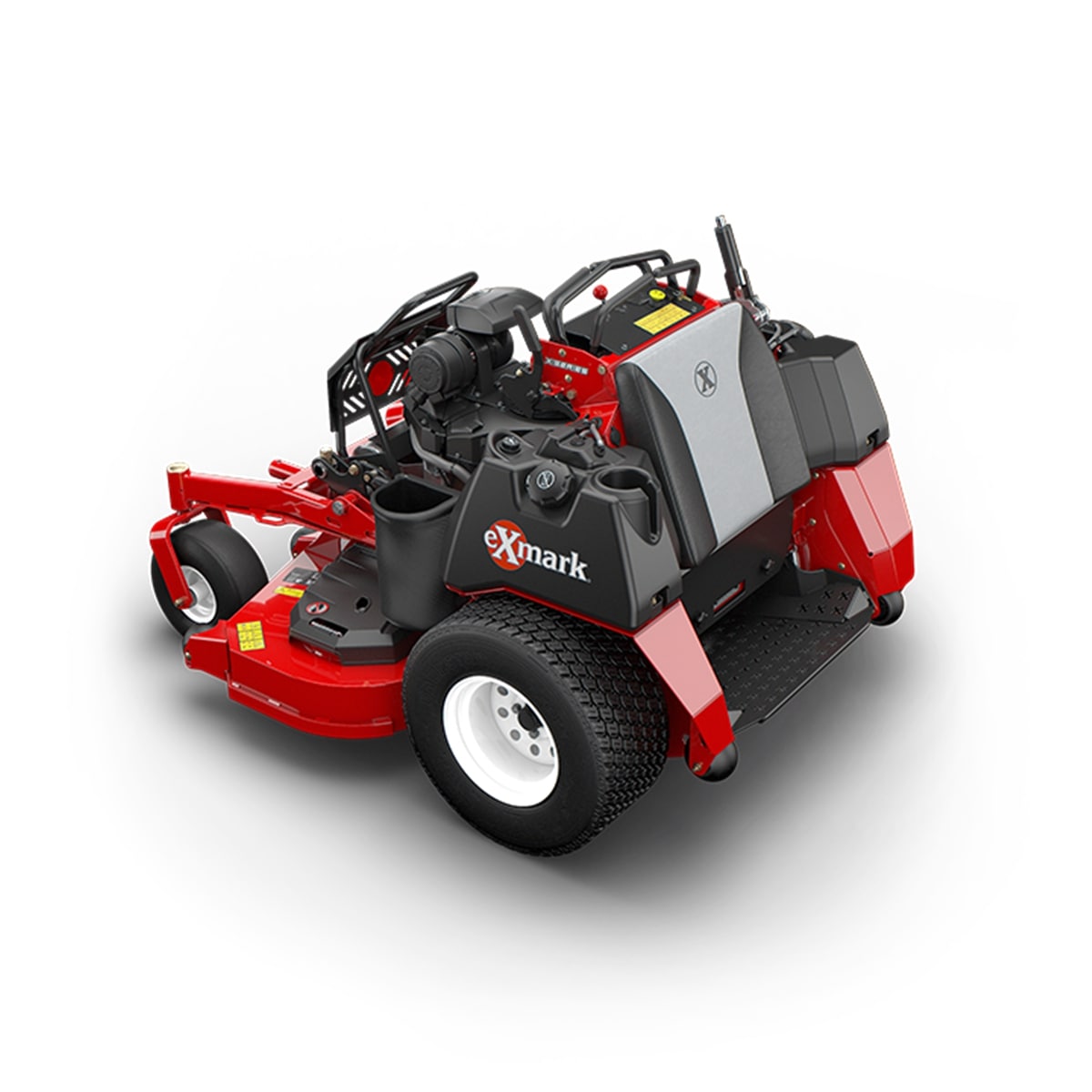

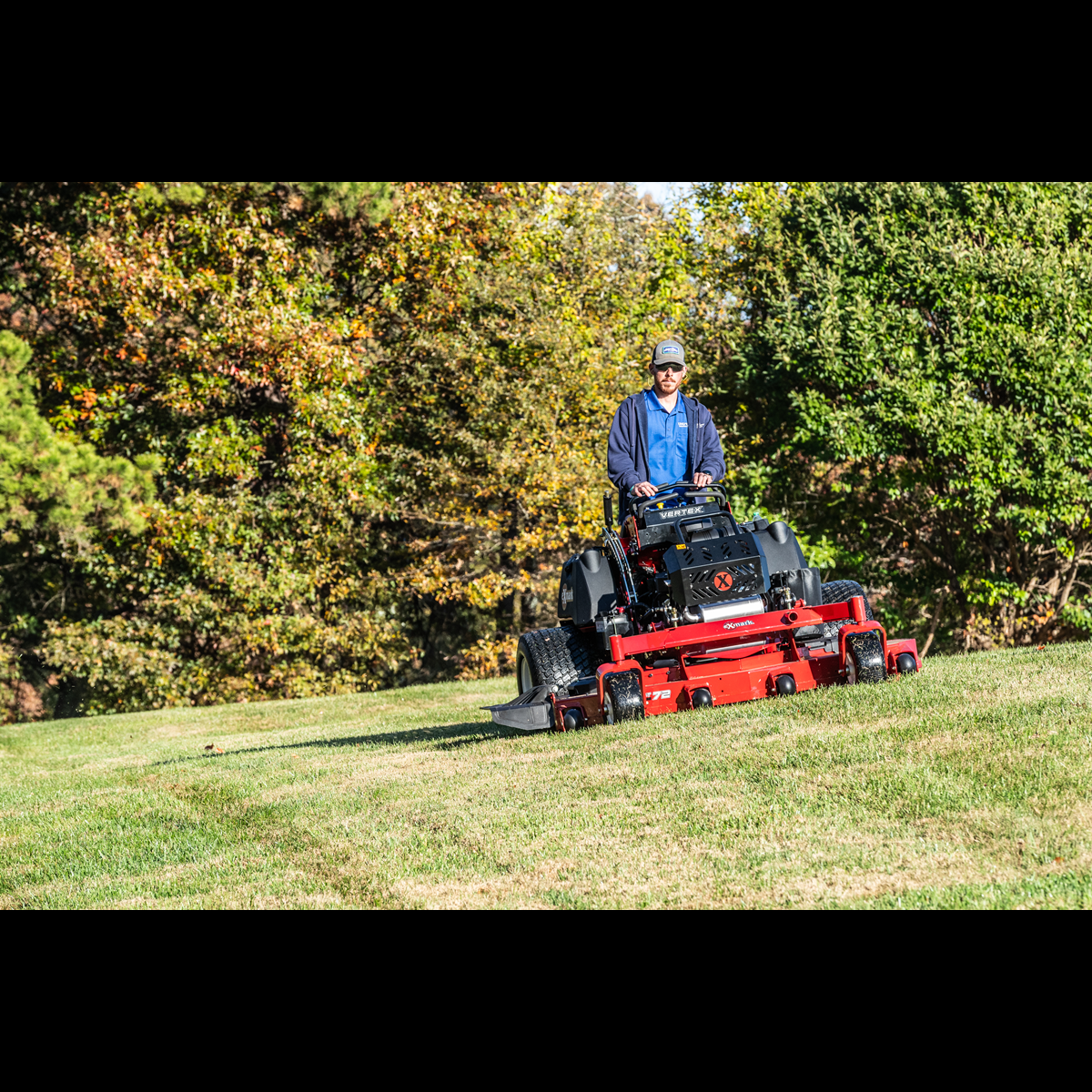

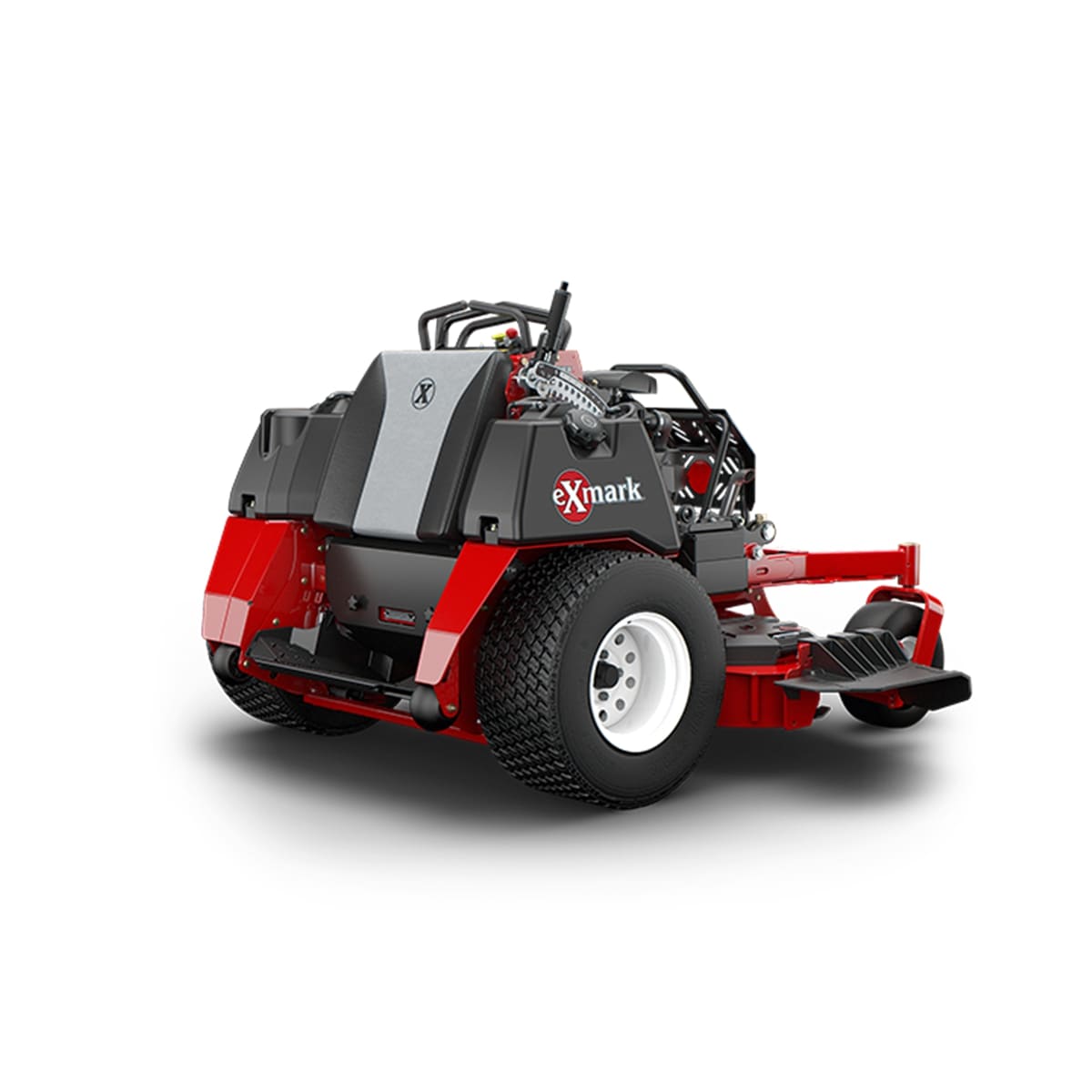

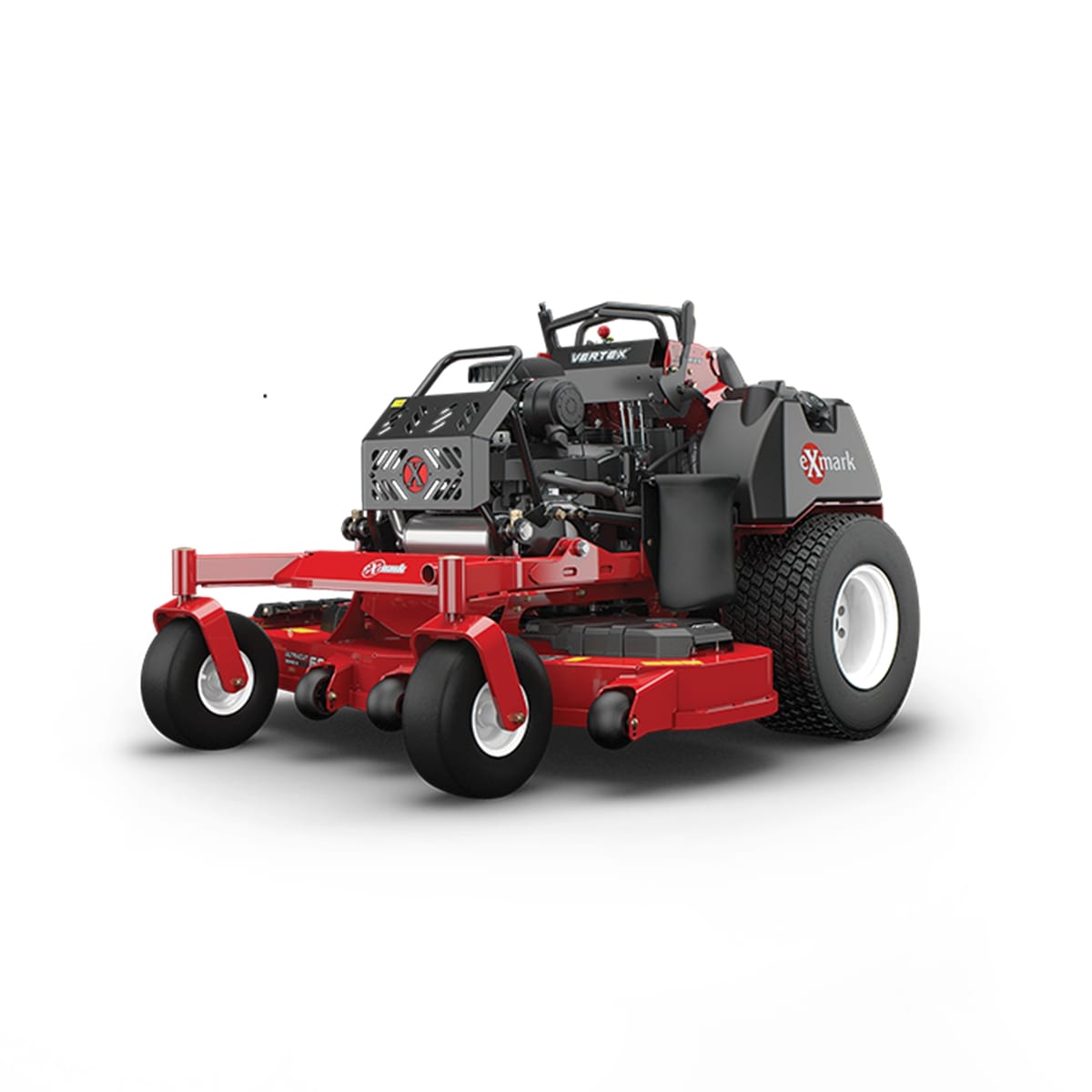

Designed to raise the bar for stand-on mower performance and productivity, Vertex X-Series uses the same formed and welded tubular steel frame and heavy-duty 15-inch casters as our premier Lazer Z zero-turn riding mowers. With carbureted Kawasaki FX1000 engines, you'll have the power to finish jobs faster, with a better quality of cut thanks to our unmatched UltraCut cutting decks. One look and it's easy to see why the Vertex X-Series is the next generation of stand-on mowers.

Features:

• Professional Productivity: When equipped with the 72-inch UltraCut Series 6 cutting deck, Vertex X-Series can cut more than seven acres per hour, with Exmark's signature quality of cut. Adjust cut height quickly and easily from 1.5- to 5.0-inches with the single-point height of cut adjustment system. And with 14-gallons of fuel capacity, Vertex X-Series delivers maximum runtime between fill-ups.
• Operator Focused Design: The Vertex X-Series optimizes operator comfort with bolstered operator pad and suspended operator platform located low and centered between the rear wheels. When combined with the easy-to-use dual-action controls, you'll feel balanced and in control of any situation.
• Engineered for Low Maintenance: We engineered Vertex X-Series to run all season without maintenance, virtually eliminating productivity killing in-season downtime. And when it's time for maintenance, we've made it easy to do with features including a magnetic operator pad that's removable without tools, and an open architecture that enables easy access to the engine and hydro drive system.

Specification:

• UPC: 193308241340
• Engine Brand: Kawasaki
• Engine Model: FX1000V
• Engine Displacement: 999 cc
• Engine Series: V-Twin
• Fuel System: Carbureted
• Engine Speed: 3,600 rpm
• Starter Type: Electric
• Fuel Type: Gasoline
• Fuel Capacity: 14-gallon (dual tanks on RH and LH side)
• Air Filter: Heavy-duty canister filtration system
• Carb Compliant: No

Transmission & Drive

• Transmission Type: Hydrostatic
• Transmission Brand: Hydro-Gear
• Drive System: Hydro-Drive
• Drive Description: Two Hydro-Gear 16 cc pumps powering two Hydro-Gear 17.8 cu in motors
• Transmission Speeds: Infinitely Variable
• Speed:
• Forward: 0–12.0 mph
• Reverse: 0–5.0 mph
• Drive Wheel Release: Allows movement without engine running
• PTO Engagement: Warner 250 ft-lb clutch
• Parking Brake: Lever-actuated internal motor brake

Chassis & Frame

• Tractor Frame: Welded, heavy-duty 1.5" x 3.0" tubular steel
• Steering Control: Twin levers with center fixed reference bar
• Cup Holder: Yes
• Fuel Indicator: Float gauge
• Electrical: 12V battery with 30-amp alternator
• Standard Features: Enhanced Engine Hour Meter

Deck System

• Deck Style: Floating Deck
• Deck Style Description: Full-floating UltraCut Series 6
• Side discharge standard
• Molded discharge chute
• Option to bag or mulch
• Deck Construction:
• 10-gauge formed and continuously seam-welded top
• 7-gauge side skirt
• Deck Width: 60"
• Cutting Heights: 1.5" to 5.0" (adjustable in 0.25" increments)
• Deck Lift: Single-point HOC with mechanical lift-assist springs
• Blades: 3 blades at 20.5" each
• Blade Tip Speed: Approx. 18,500 fpm
• Blade Spindles:
• No maintenance, sealed and non-greasable
• 7.75" cutter housing
• 1.75" splined blade driver
• 1.0" spindle shaft

Tires

• Front Caster Tires: 15 x 6.0-6, smooth-tread, semipneumatic with tapered roller bearings
• Drive Tires: 24 x 12-12 Hoosier Grass Master

Dimensions & Weight

• Length: 73.36"
• Width: 72.87"
• Height: 48.75"
• Curb Weight: 1,310 lbs

Safety

• Safety Package: Operator Presence Controls (OPC) with safety interlock system indicators
