Description:

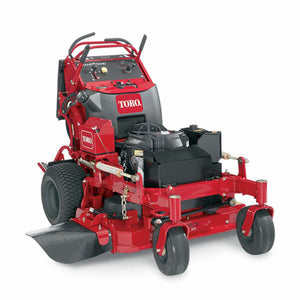

Rough bumps and challenging terrain are all in a day’s work. Feeling them shouldn’t have to be. The Toro GrandStand combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind — creating a fast, maneuverable and more productive alternative. And now the GrandStand is even better with all-new next generation upgrades that add up to higher productivity, lower maintenance and easier service. This mower has a 15 hp (11 kw) Kawasaki® FS541 engine with a 36 in. (91 cm) TURBO FORCE® deck.

Features:

• Foldable operator platform instantly converts the machine to a walk-behind.
• Exceptional visibility from the GrandStand protects the operator, the mower and the property. The operator is better able to steer clear of obstacles, and easily pass beneath branches.
• With hefty cast iron spindles including maintenance free bearings plus only annual grease points, there will be less need for routine maintenance. That means less time spent off your mower and more time generating profits with it.
• Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

• Product Use: Commercial
• Engine Brand: Kawasaki
• Engine: 15 hp* Kawasaki® FS541V
• Engine Displacement: 603 cc
• Engine Horsepower: 15.0 hp
• Start Type: Electric
• Fuel Type: Gasoline
• Fuel Capacity: 7.8 gal. / 29.5 L / 31.2 Qt.
• CARB Compliant: Yes

Drive System

• Type: Pumps 10cc rev Wheel Motors 10 cir
• Drive Tires: 18 in. x 8.5 in. - 8 in. (46 cm x 22 cm - 20 cm)
• Caster Tires: 11 in. x 4 in. - 5 in. (28 cm x 10.2 cm - 12.7 cm) Flat-Free Semi-Pneumatic
• Forward Ground/Transport Speed: Up to 8.0 mph / 12.8 kph

Deck System

• Deck Design: 7-gauge 36" (91 cm) TURBO FORCE® with bull-nose bumper
• Deck Material: 7 Gauge Steel
• Deck Size: 36 in / 91 cm
• Blades: 0.204 in. (0.5 cm) heat-treated steel
• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Discharge Chute: Rubber
• Height of Cut: 1.0 - 5.0 in. / 2.5 - 12.7 cm
• Adjustable Discharge Baffle: Standard

Chassis & Controls

• Controls: Twin Lever
• Comfort Platform: Foldable Operator Platform with Suspension
• Front Bumper: Reinforced Bull-Nose
• Carrier Frame: 3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)
• Clutch: Electromagnetic
• Spindle Housing: 9.375 in / 23.8 cm Diameter Cast Iron
• Spindle Bearings: Maintenance-free

Other Features

• Hour Meter: Standard
• Hydraulic Fluid: Premium synthetic
• Box Dimensions: 77.75 in. x 49.5 in. x 50 in. / 197.5 cm x 125.7 cm x 127 cm
• Weight: 712 lbs / 323 kg
