Description:

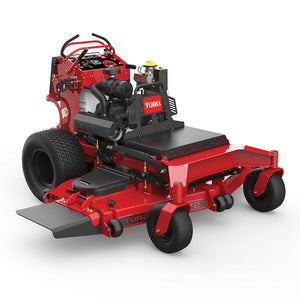

The Toro GrandStand® combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind creating a fast, maneuverable and more productive alternative. The HDX model provides increased efficiency with higher horsepower.

Features:

• The TURBO FORCE® cutting deck is built to withstand the long, tough days on the job.
• 24" tires with big block horsepower allow you to travel at 12 mph.
• More efficient operation with a flip up operator platform, utility hood and easy to get on and off.
• The 7 gauge TURBO FORCE® deck with the i-beam front end is built to last and backed by our impressive warranty.
• Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
• 10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
• Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
• A wide stance and optimal balance enhance hillside stability and control.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

• Product Type: Stand-On Mower
• Product Use: Commercial
• Start Type: Electric
• Weight: 1,120 lbs / 508 kg
• Box Dimensions: 91 in. x 70 in. x 52.5 in. (231.1 cm x 117.8 cm x 133.4 cm)
• Hour Meter: Standard
• Fuel Type: Gasoline
• Fuel Capacity: 10.5 gal. / 39.7 L / 42 Qt.

Engine & Transmission

• Engine Brand: Briggs & Stratton
• Engine Model: Vanguard EFI
• Engine Displacement: 993 cc
• Engine Horsepower: 37 hp
• Air Filter: Heavy-Duty Canister Air Cleaner
• Clutch: Electromagnetic
• Drive System: Tuff Torq TZT13s 13cc IHTs
• Forward Speed: Up to 12.0 mph / 19.3 kph
• Reverse Speed: Up to 5.0 mph / 8.0 kph

Deck & Cutting System

• Deck Size: 60 in / 152 cm
• Deck Design: 7-gauge TURBO FORCE® 2 w/ bull-nose bumper
• Deck Material: 7-gauge steel
• Blade Design: 0.204 in. / 0.518 cm
• Number of Blades: 3
• Blade Tip Speed: Not specified (typically ~18,500 ft/min)
• Discharge Chute: Rubber
• Adjustable Discharge Baffle: Standard, Tools-Free
• Height of Cut: 1.5 – 5.0 in. / 3.8 – 12.7 cm in 0.25 in. increments
• Anti-Scalp Wheels: Standard

Operator Features

• Comfort Platform: Foldable Operator Platform with Suspension
• Steering Controls: Twin Lever
• Spindle Bearings: Greaseless Ball Bearings
• Spindle Housing: 9 in / 22.9 cm Diameter Cast Aluminum
• Caster Tires: 13 in. x 6.5 in. (33 cm x 16.5 cm) Flat-Free Semi-Pneumatic
• Drive Tires: 24 in. x 12 in. - 12 in. (61 cm x 30.5 cm - 30.5 cm)
• CARB Compliant: No
