Description:

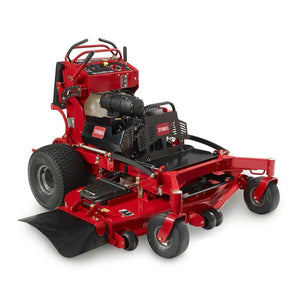

Rough bumps and challenging terrain are all in a day’s work. Feeling them shouldn’t have to be. The Toro GrandStand combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind — creating a fast, maneuverable and more productive alternative. And now the GrandStand is even better with all-new next generation upgrades that add up to higher productivity, lower maintenance and easier service. This mower has a 23 hp Kohler EFI engine.

Features:

• Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
• Foldable operator platform instantly converts the machine to a walk-behind.
• Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
• No hydraulic hoses, reduced parts, no routine greasing and simplified design to save you time.
• Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
• 10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
• A wide stance and optimal balance enhance hillside stability and control.
• The TURBO FORCE® cutting deck is built to withstand the long, tough days on the job.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

Engine

• Brand: Kohler
• Model: Command EFI
• Horsepower: 23 hp
• Displacement: 747 cc
• Fuel Type: Gasoline
• Start Type: Electric
• Air Filter: Heavy-Duty Canister

Deck

• Design: 48" TURBO FORCE® with bull-nose bumper
• Material: 7-gauge steel
• Size: 48 in / 122 cm
• Height of Cut: 1.5 - 5.0 in. / 3.8 - 12.7 cm
• Blades: 0.204 in. (heat-treated steel)
• Blade Tip Speed: 18,500 ft/min

Dimensions & Weight

• Box Dimensions: 82 x 63 x 52 in. / 208.3 x 160.0 x 132.1 cm
• Weight: 877 lbs / 397.8 kg

Tires & Wheels

• Caster Tires: 11 x 4 - 5 in. (Flat-Free Semi-Pneumatic)
• Drive Tires: 20 x 10.5 - 8 in.

Drive System

• Type: Unitized Pumps (10cc) & Wheel Motors (10ci)
• Speed: Up to 10.0 mph / 16.0 kph

Frame & Build

• Carrier Frame: 3 x 1.5 in. / 12 gauge steel
• Front Bumper: Reinforced Bull-Nose
• Spindle Housing: 9 in. Diameter Cast Aluminum
• Spindle Bearings: Maintenance-free

Features

• Discharge Baffle: Adjustable, Tools-Free
• Discharge Chute: Rubber
• Comfort Platform: Foldable with Suspension
• Controls: Twin Lever
• Clutch: Electromagnetic
• Hour Meter: Standard
• Hydraulic Fluid: Premium Synthetic
• Anti-Scalp Wheels: Optional
• CARB Compliant: Yes
