Description:

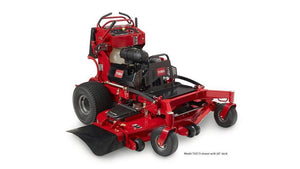

Rough bumps and challenging terrain are all in a day’s work. Feeling them shouldn’t have to be. The Toro GrandStand combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind — creating a fast, maneuverable and more productive alternative. And now the GrandStand is even better with all-new next generation upgrades that add up to higher productivity, lower maintenance and easier service. This mower has a 22 hp Kawasaki FX 726cc engine.

Features:

• Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
• Foldable operator platform instantly converts the machine to a walk-behind.
• Great visibility for easy navigation around obstacles, protecting the operator, mower, and property.
• Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
• No hydraulic hoses, reduced parts, no routine greasing and simplified design to save you time.
• Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
• 10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
• A wide stance and optimal balance enhance hillside stability and control.
• The TURBO FORCE® cutting deck is built to withstand the long, tough days on the job.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

• Product Type: Stand-On Mower
• Product Use: Commercial
• Start Type: Electric
• Steering Controls: Twin Lever
• Hour Meter: Standard
• Front Bumper: Reinforced Bull-Nose
• Comfort Platform: Foldable Operator Platform with Suspension

Engine

• Engine Brand: Kawasaki
• Engine Model: FX691V
• Horse Power: 22.0 hp (16.4 kW)
• Displacement: 726 cc
• Air Filter: Heavy-Duty Canister Air Cleaner
• Fuel Type: Gasoline
• Fuel Capacity: 10.5 gal / 39.7 L / 42 Qt

Drive System

• Drive System: Unitized Pumps 10cc with Wheel Motors 10 cir
• Transmission: (Implied within drive system; no separate spec)
• Drive Tires: 20 in. x 10.5 in. - 8 in. (50.8 cm x 26.7 cm - 20.3 cm)
• Caster Tires: 11 in. x 4 in. - 5 in. (27.9 cm x 10.2 cm - 12.7 cm), Flat-Free Semi-Pneumatic
• Forward Speed: Up to 10.0 mph / 16.0 kph

Deck

• Deck Size: 48 in. / 122 cm
• Deck Design: 80-grade 7-gauge TURBO FORCE® with bull-nose bumper
• Deck Material: 7 Gauge Steel
• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Blades: 0.204 in. (0.5 cm) heat-treated steel
• Number of Blades: (Not specified – likely 3 based on standard for 48")
• Anti-Scalp Wheels: Optional
• Discharge Chute: Rubber
• Adjustable Discharge Baffle: Standard
• Height of Cut: 1.5 - 5.0 in. / 3.8 - 12.7 cm

Chassis

• Carrier Frame: 3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm)
• Spindle Housing: 9.375 in / 23.8 cm Diameter Cast Iron
• Spindle Bearings: Maintenance-free
• Clutch: Electromagnetic

Dimensions & Weight

• Box Dimensions: 82 in. x 63 in. x 52 in. / 208.3 cm x 160.0 cm x 132.1 cm
• Weight: 875 lbs / 396.9 kg

Compliance

• CARB Compliant: Not CARB Compliant
