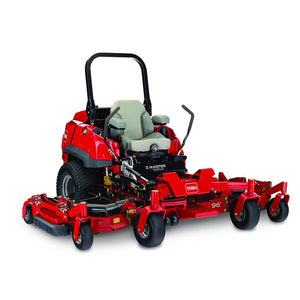

Description:

Features:

• 37 HP (1642cc) Yanmar Diesel Engine
• Engine features heavy-duty canister air cleaner air filtration system with an electronic vacuum sensor
• Fuel tank has a 12.5 gallon capacity
• Up to 12.5 mph forward
• 96" Fabricated rear discharge deck
• 4 blades at 24.5" length
• 7 gauge steel Turbo Force with bull nose front bumper
• 13 standard anti-scalp wheels included
• 1.0" to 5.5" cutting height
• 9" diameter cast iron with 1" heavy duty spindle shaft and maintenance-free bearings
• Horizon Technology hour meter included
• Back tires are 26 x 12-12" in size
• Front caster tires are 15 x 6-6" flat free semi-pneumatic
• Unit comes with a deluxe suspension seat (Iso-Mount; Flip-Up)

Specification:

• MPN: 74096
• Manufacturer: Toro
• Grade: Commercial
• Engine Manufacturer: Yanmar
• Engine Size: 37hp
• Fuel Tank Volume: 12.5 gallons
• Air Filter: Heavy-Duty Canister Air Cleaner Air Filtration System with Electronic Vacuum Sensor
• Oil Filter: Yes
• Drive System: 17.84 cu in Hydro-Gear HGM-H Motors with 18 cc Kanzaki Pump
• Pump Displacement: 18cc
• Speed Forward: 12.5 mph
• Tire Size Front: 15" x 6" - 6"
• Tire Size Rear: 26" x 12" - 12"
• Deck Size: 96 inches
• Deck Thickness: 7 gauge
• Cutting Deck Type: Fabricated
• Spindle Material: Cast Iron
• Greaseable Spindle: No
• Blades: 4
• Blade Tip Speed: 18,100 ft/min
• Cutting Height: 1" - 5.5"
• Blade Engagement: Electric
• Seat Type: Suspension
• Arm Rest: Yes
• Length: 97.38 inches
• Width: 102.3 inches
• Height: 51 inches (ROPS Folded) / 71.8 inches (ROPS Upright)
