Description:

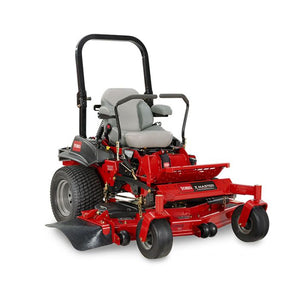

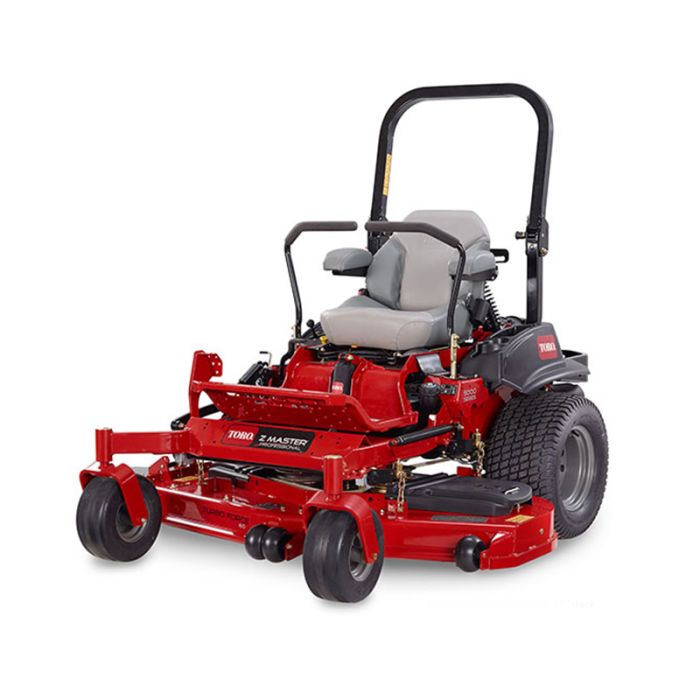

Z Master® 6000 Series with MyRIDE® Suspension System - 31 HP (23.12 kw) Kawasaki® FX 921cc Engine with 60" (152 cm) TURBO FORCE® deck. Model shown 75951.

HIGHLIGHTS:

• Redesigned MyRIDE® Suspension System features a suspended operator platform and adjustable rear shocks to provide a superior ride
• 31 HP (23.12 kw) Kawasaki® FX 921cc Engine
• 60" (152 cm) TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute
• Deluxe suspension seat features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue

SPECIFICATIONS

• Engine: 31 hp (23.12 kw) Kawasaki® FX 921cc
• Fuel Capacity: Gasoline - 12 gallons (45 L) single-point fill
• Adjustable Discharge Baffle: Standard, tools-free
• Air Filter: Heavy-Duty Canister Air Cleaner
• Blade Tip Speed: 18,500+ ft/min (5,640 m/min)
• Blade Type: 1/4" (6 mm) thick heat-treated steel
• Carrier Frame: 3" x 1-1/2" (7.6 cm x 3.8 cm) tubular steel
• Caster Tires: 13" x 6.5"- 6" (33 cm x 16.5 cm - 15.2 cm) flat-free semi-pneumatic
• Deck Design: 7-gauge 60" (152 cm) TURBO FORCE® w/bull-nose bumper
• Discharge Chute: Rubber
• Drive System: Hydraulic unitized pumps and wheel motors
• Drive Tires: 24" x 12" - 12" (61 cm x 30.5 cm - 30.5 cm)
• Ground Speed: 11.5 mph (19 km/h) forward
• Height of Cut: 1" - 5.5" in 1/4" (2.5 - 14 cm in 6 mm) increments
• Hour Meter: Standard
• Hydraulic Fluid: Premium synthetic
• ROPS: Folding; standard
• Comfort Platform: MyRIDE® Suspension System
• Platform Travel: 3.6"
• Shocks: 1 Center / 2 Rear
• ISO Mounts: Qty 4, 2.5" 3-D isolation mounts
• Seat: Deluxe seat with padded armrests
• Adjustability: 5 point adjustment on rear shocks
• Spindle Housing: Cast iron
• Steering Controls: 1-5/8" (4 cm) dia. levers; adjustable

NOTES:

*The gross horsepower of this engine was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 or J2723. As configured to meet safety, emission, and operating requirements, the actual engine horsepower on this class of mower will be significantly lower.
