Description:

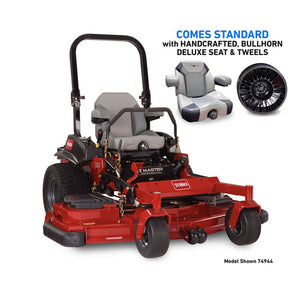

Z Master Professional 5000 Series mowers offer rear discharge decks for increased productivity in taller grass. These EFI models also use up to 25% less fuel than equivalent non-EFI mowers. The rear discharge design allows operators to trim on either side of the deck — no need to change direction to avoid discharging debris on roadways, sidewalks or flowerbeds. Clippings are dropped within the path of the mower, saving time and cleanup.

Features:

• Tweel Turf Tires - No air pressure to maintain, no flat tires, no compromises. Extra long wear life two to three times that of a pneumatic tire at equal tread depth.
• Our TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute, nothing cuts as fast or as well
• Deluxe suspension seat features thick cushions, large bolsters, fully adjustable to match operator comfort
• Unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

• Product Type: Zero Turn Mower
• Product Use: Commercial
• Product Features: Electric Start, Gas Powered, Hour Meter

Engine

• Engine Brand: Kohler
• Engine Model: Command Pro EFI
• Engine: 26.5 hp* (20 kW) Kohler® Command Pro EFI 747 cc
• Engine Displacement: 747 cc
• Engine Horsepower: 25 hp
• Fuel Type: Gasoline
• Fuel Capacity: 12 gal. / 45.4 L / 48 Qt.
• Ignition: Electric
• Start Type: Electric

Drive System

• Drive System: Unitized Pumps 12cc and Wheel Motors 14.6 cir
• Forward Ground/Transport Speed: Up to 10.0 mph / 16.0 kph
• Drive Tires: Airless radial 24 in. (60.9 cm) Michelin x Tweel Turf Tires
• Caster Tires: 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic

Deck and Cutting System

• Deck Size: 60 in. / 152 cm
• Deck Design: 80-Grade 7-gauge 60" (152.4 cm) TURBO FORCE® Rear Discharge with Bull-Nose Bumper
• Deck Material: 7-Gauge Steel
• Discharge Chute: Rubber
• Adjustable Discharge Baffle: Standard
• Blades: 0.204 in. (0.5 cm) heat-treated steel
• Number of Blades: 3
• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Height of Cut: 1.0 - 5.5 in. / 2.5 - 14.0 cm
• Anti-Scalp Wheels: 2 Side Bumpers, 4 Rollers

Frame and Protection

• Carrier Frame: 3 in. x 1.5 in. x 10 gauge (7.6 cm x 3.8 cm x 10 gauge)
• Front Bumper: Reinforced Bull-Nose
• Roll-Over Protection System (ROPS): Folding; Standard

Comfort and Controls

• Comfort Platform: Deluxe Suspension with 3-D Isolation Mounts
• Seat: Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent
• Armrests: Standard
• Steering Controls: 1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened
• Cup Holder: Standard

Other Features

• Clutch: Electromagnetic
• Spindle Bearings: Greaseless Ball Bearings
• Spindle Housing: 9 in. / 22.9 cm Diameter Cast Aluminum
• Hydraulic Fluid: Premium Synthetic
• Hour Meter: Standard
• CARB Compliant: Yes

Dimensions and Weight

• Box Dimensions: 91 in. x 70 in. x 52 in. / 231.1 cm x 177.8 cm x 132.1 cm
• Weight: 1,324 lbs / 600.6 kg
