Description:

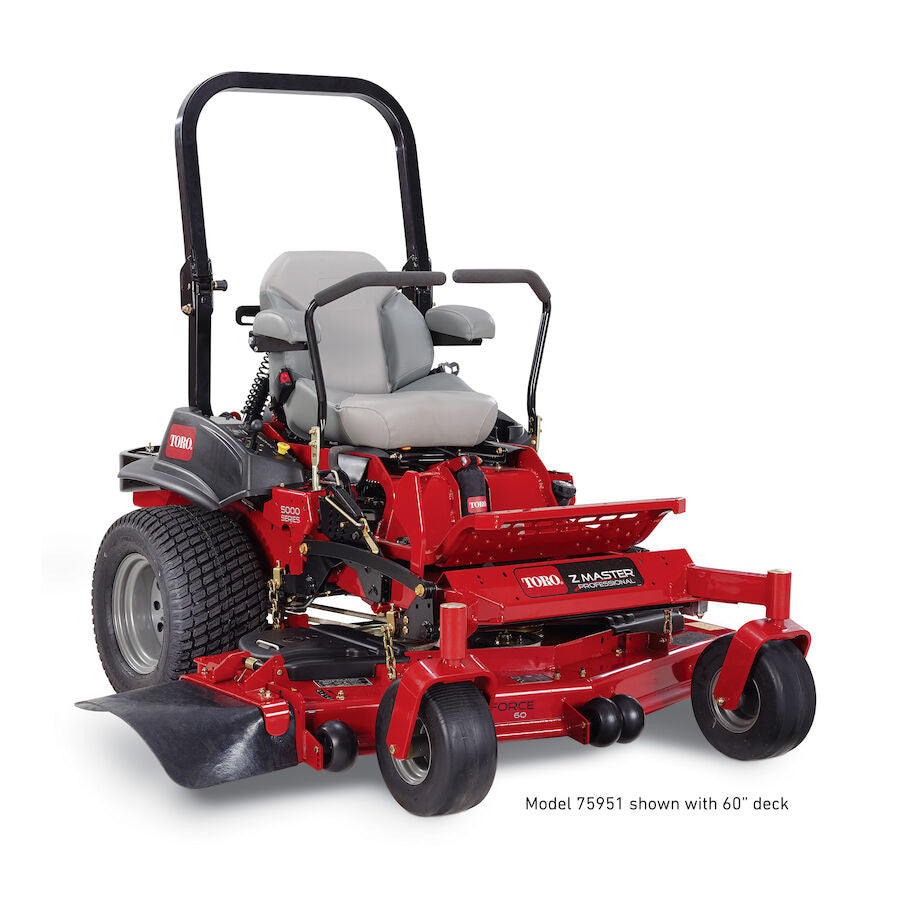

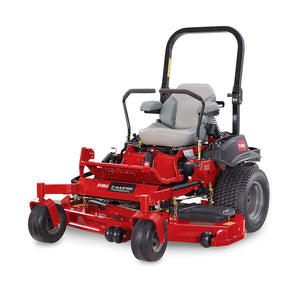

This 5000 Series Z Master zero turn mower features the amazingly comfortable redesigned MyRIDE® Suspension System that rides like no other machine in the industry. A powerful commercial-grade 25 hp (18.4kW) Kohler® Command Pro EFI 747cc engine with 52 in. TURBO FORCE deck delivers impressive cutting results and durability at an outstanding value. The perfect zero turn for the landscape contractors and large acreage properties.

Features:

• Redesigned MyRIDE® Suspension System features a fully suspended operator platform and adjustable rear shocks to provide a superior ride.
• Our TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute, nothing cuts as fast or as well
• Unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

• Product Type: Zero Turn Mower
• Product Use: Commercial
• Start Type: Electric
• Hour Meter: Standard
• Fuel Type: Gasoline
• Fuel Capacity: 12 gal. / 45.4 L / 48 Qt.
• Weight: 1,137 lbs / 515.7 kg
• Box Dimensions: 91 in. x 70.5 in. x 52.5 in. / 213.1 cm x 179.1 cm x 133.4 cm

Engine

• Engine Brand: Kohler
• Engine: 25 hp* (18.4 kW) Kohler® Command Pro EFI
• Displacement: 747 cc
• Horsepower: 25 hp

Drive System

• Drive System: Hydraulic Unitized Pumps and Wheel Motors
• Forward/Transport Speed: Up to 10.0 mph / 16.0 kph
• Drive Tires: 23 in. x 9.5 in. - 12 in. (58.4 cm x 24.1 cm - 30.5 cm)
• Caster Tires: 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic

Cutting Deck

• Deck Size: 52 in / 132 cm
• Deck Design: 80-grade 7-gauge TURBO FORCE® with Bull-Nose Bumper
• Deck Material: 7-Gauge Steel
• Discharge Chute: Rubber
• Blades: 3
• Blade Thickness: 0.204 in. (0.5 cm) heat-treated steel
• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Height of Cut: 1.0 – 5.5 in. / 2.5 – 14.0 cm
• Adjustable Discharge Baffle: Standard, Tools-Free
• Anti-Scalp Wheels: 6 Standard, 1 Optional

Comfort and Controls

• Comfort Platform: MyRIDE® Suspension System
• Platform Travel: 3.6 in / 9.1 cm
• Seat: Handcrafted Deluxe Suspension Seat with Arm Rests and Bullhorn Accent
• Armrests: Standard
• Steering Controls: 1-5/8 in. (4.1 cm) Diameter Grips; Adjustable, Dampened
• Shocks: 1 Front Center / 2 Rear
• Adjustment: 5-point adjustment on rear shocks
• ISO Mounts: Qty 4, 2.5 in. 3-D Isolation Mounts
• Cup Holder: Standard

Frame & Components

• Carrier Frame: 3 in. x 1.5 in. x 10 gauge (7.6 cm x 3.8 cm x 10 gauge)
• Front Bumper: Reinforced Bull-Nose
• Spindle Housing: 9 in / 22.9 cm Diameter Cast Aluminum
• Spindle Bearings: Maintenance-free

Additional Features

• Roll-Over Protection System (ROPS): Folding; Standard
• Hydraulic Fluid: Premium Synthetic
• Air Filter: Heavy-Duty Canister Air Cleaner
