Description:

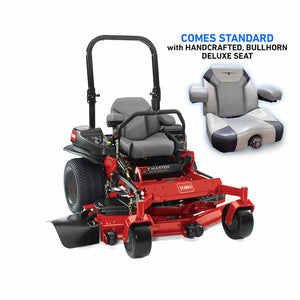

Z Master® 5000 - 23 hp Kohler® CommandPRO EFI 747cc Engine with 48 in (122 cm) TURBO FORCE® deck. Model Shown 74915.

Features:

• Deluxe suspension seat features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue, fully adjustable to match operator comfort
• Our TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute, nothing cuts as fast or as well
• Unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points

Specifications:

• Product Type: Zero Turn Mower
• Product Use: Commercial
• Start Type: Electric
• Fuel Type: Gasoline
• Hour Meter: Standard

Engine

• Brand: Kohler
• Model: Command PRO EFI
• Horsepower: 23.0 hp*
• Displacement: 747 cc

Drive System

• Type: Hydraulic Unitized Pumps and Wheel Motors
• Drive Tires: 23 in. x 9.5 in. - 12 in. (58 cm x 24 cm - 30.5 cm)
• Caster Tires: 13 in. x 5 in. - 6 in. (33 cm x 12.7 cm - 15.2 cm) Flat-Free Semi-Pneumatic
• Forward/Transport Speed: Up to 10.0 mph / 16.0 kph

Cutting System

• Deck Size: 48 in / 122 cm
• Deck Design: 80-Grade 7-Gauge TURBO FORCE® with Bull-Nose Bumper
• Deck Material: 7 Gauge Steel
• Blades: 0.25 in. (0.6 cm) Thick Heat-Treated Steel
• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Discharge Chute: Rubber
• Adjustable Discharge Baffle: Standard

Operator Comfort & Controls

• Seat: Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent
• Steering Controls: 1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened

Durability & Maintenance

• Carrier Frame: 3 in. x 1.5 in. (7.6 cm x 3.8 cm) x 10 Gauge
• Front Bumper: Reinforced Bull-Nose
• Spindle Housing: 9 in. / 22.9 cm Diameter Cast Aluminum
• Spindle Bearings: Greaseless Ball Bearings
• Hydraulic Fluid: Premium Synthetic

Safety

• Roll-Over Protection System (ROPS): Folding; Standard
