Description:

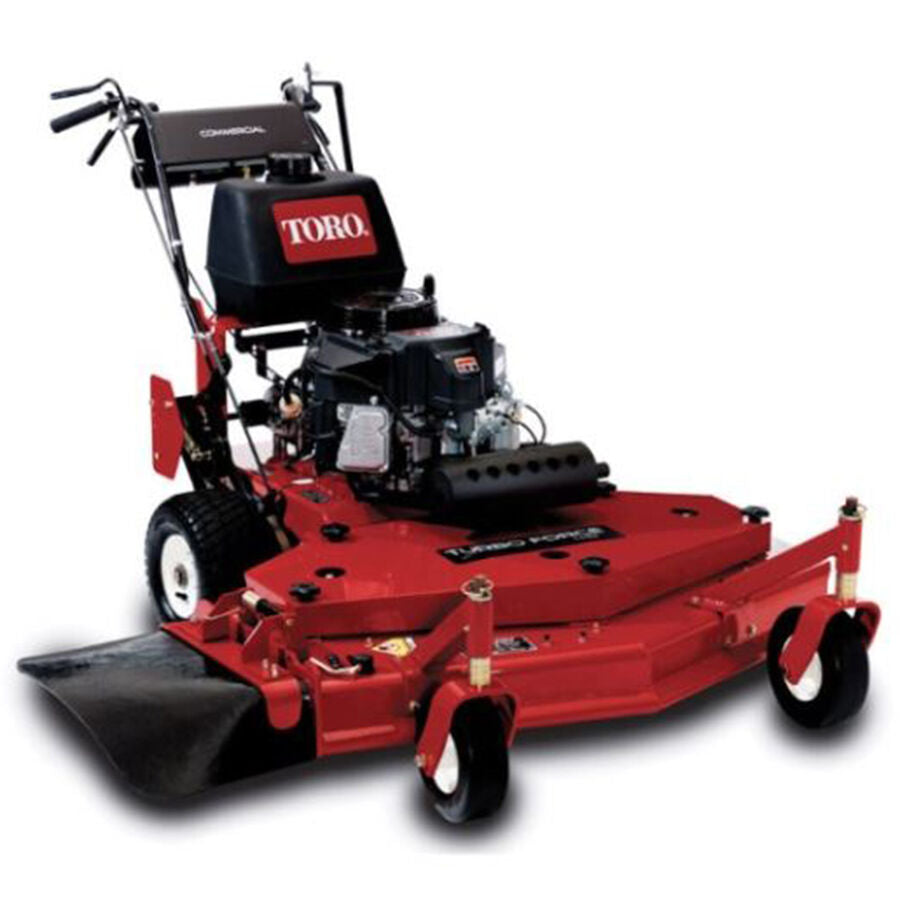

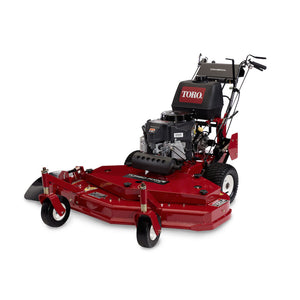

14.5 HP Kawasaki® FS481V 603cc Engine with 48 in. (122 cm) TURBO FORCE cutting technology deck.

Features:

• 48" TURBO FORCE 7-gauge cutting deck w/patented adjustable baffle
• Patented adjustable baffle allows operator to achieve maximum cutting performance
• Massive 9-3/8" (24 cm) diameter spindle
• 5-Speed gearbox with 9 spline coupler
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

• Product Type: Walk Behind Mower
• Product Use: Commercial
• Start Type: Pull Cord, Recoil
• Steering Controls: Pistol Grip
• Brake System: 6 in. (15 cm) Band Brakes

Engine

• Engine: 14.5 hp* Kawasaki® FS481V
• Engine Brand: Kawasaki
• Engine Displacement: 603 cc
• Engine Horsepower: 14.5 hp
• Air Filter: 2-Stage Air Cleaner

Drive System

• Drive System: 5-Speed Transmission
• Transmission: 5-Speed Gearbox with 9 Spline Coupler
• Drive Tires: 13 in. x 6.5 in. - 6 in. (33 cm x 15 cm - 16.5 cm)
• Caster Tires: 9 in. x 3.5 in. - 4 in. (23 cm x 9 cm - 10 cm) Flat-Free
• Forward Ground/Transport Speed: Up to 6.2 mph / 9.9 kph

Deck

• Deck Design: 48 in. (122 cm) TURBO FORCE
• Deck Size: 48 in / 122 cm
• Discharge Chute: High-Performance 5/16" (8 mm) Rubber
• Blade Tip Speed: 18,000 ft/min / 5,486 m/min
• Height of Cut: 1.0 - 4.25 in. / 2.5 - 10.8 cm
• Number of Blades: 3
• Mulch, Bag, Side Discharge: Side discharge standard

Other Features

• Adjustable Discharge: Standard
• Adjustable Discharge Baffle: Standard
• Spindle Housing: 9.375 in / 23.8 cm Diameter Cast Iron
• Fuel Capacity: 5 gal. / 18.9 L / 20 Qt
• Fuel Type: Gasoline
• CARB Compliant: CARB Compliant

Dimensions

• Box Dimensions: 91 in. x 62.5 in. x 48 in. / 231.1 cm x 158.8 cm x 121.9 cm
