Description:

Every landscape professional has customers that are particular about the way their properties look after they’ve been mowed. Often the properties are equally demanding, with short runs, tight turns, trees, flowerbeds, you name it. For high-end properties, a clean, manicured look is everything.

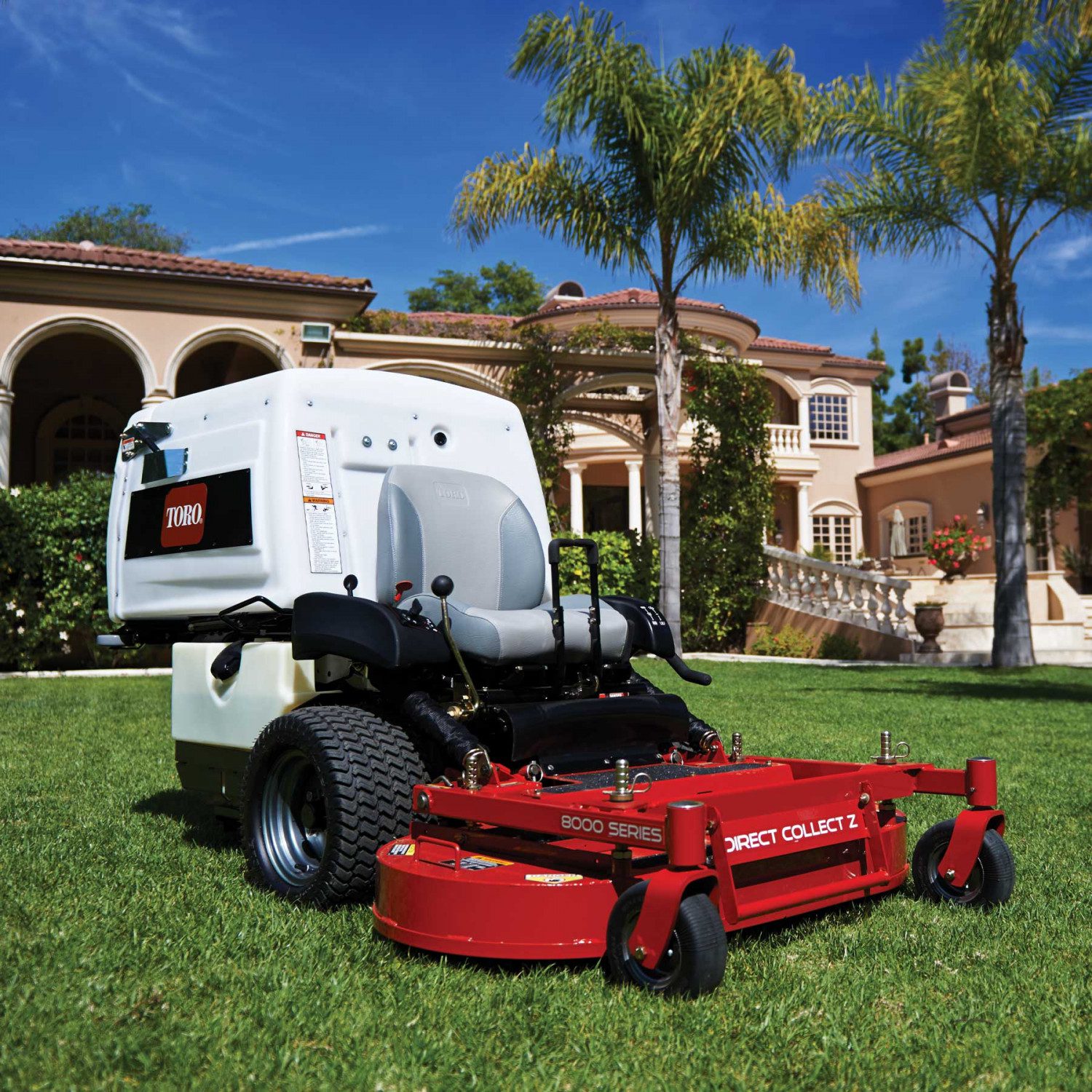

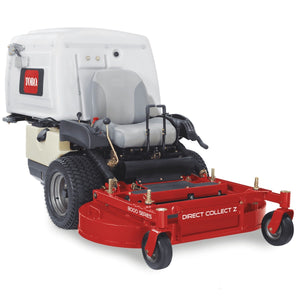

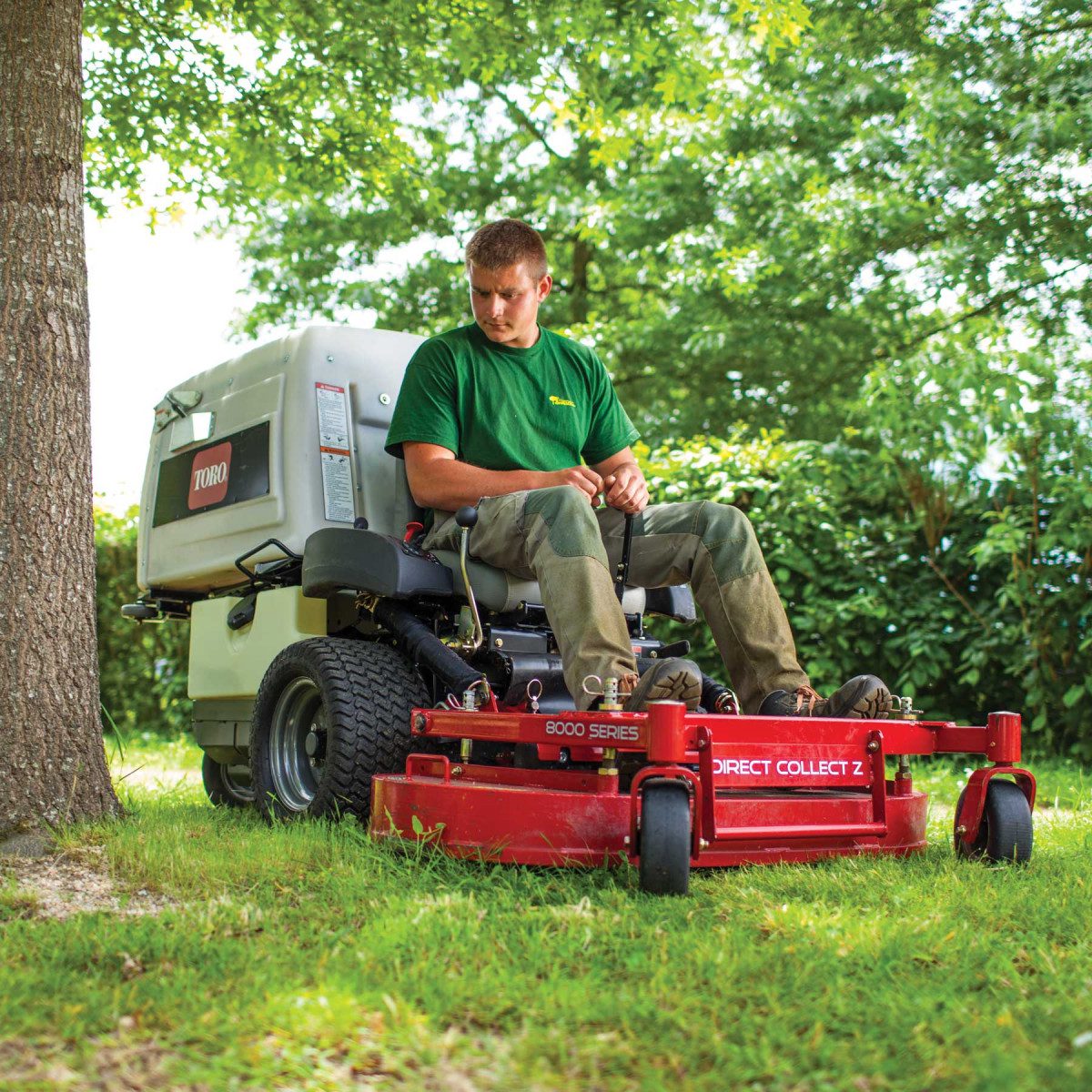

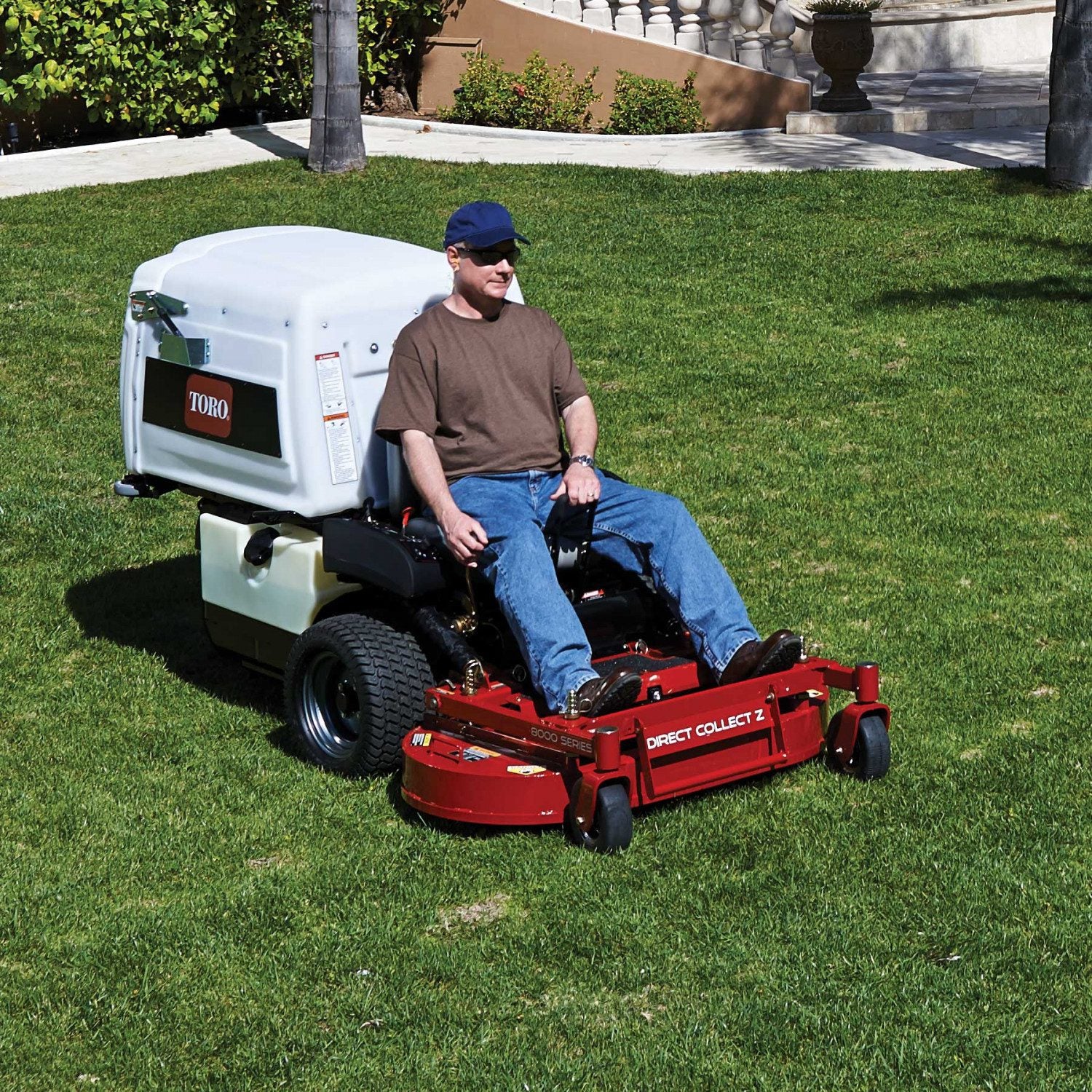

The Z Master® 8000 Series Direct Collect Z gives you that and much more. A powerful blower moves more air, allowing large volumes of material to be thrown into the hopper. The rear-discharge deck lets you trim on either side while keeping flower beds and walkways clipping-free. And the high-capacity collection system helps extend mowing time. With ground speeds up to 11.3 km/h, the 8000 series is the answer for a perfect cut in less time.

Features:

Toro Cutting and Collection Technology

Exclusive fill-reduction system provides the most versatile cutting system in a dedicated bagging machine. The floating deck follows ground contours to virtually eliminate scalping and the 11.8 cm deep deck processes taller grass at higher speeds without clogging. The unique adjustment screen also prevents clogging in wet and blowout in dry conditions to provide a clean look.

Drive Control System Design

The drive control system design utilises the latest hydro-drive technology for smooth and precise control at more productive mowing speeds. The control interface allows for increase control and consistent feel throughout the operating range. The drive system is equipped with new high performance 18 cubic inch H-Series Motors and reduced friction 12 cc Pumps to improve control feel.

Enhanced Bagging & High Capacity

Large blower to move more air allowing grass to stand up for a superior cut and the 9.5-bushel hopper means less time emptying and more time mowing. Exclusive baffle design fills evenly back to front for maximum efficiency.

Specifications:

• Engine: 25 hp (18.6 kW) Kohler® CH740 V-Twin, 725 cc
• Fuel Capacity: 28.39 litres
• Cutting Width: 106.7 cm (42 in)
• Blade Tip Speed: 18,500+ ft/min
• Caster Tyres (Front): 8" x 3" - 4" Semi Pneumatic
• Drive Tyres (Rear): 18" x 10.5" - 10" MultiTrac® C/S
• Deck Type: Rear discharge, full-floating
• Deck Material: Heavy-duty with gear-driven spindle assemblies
• Drive System: Dual Hydro-Gear 12 cc pumps with planetary reduction motors
• Max Forward Speed: 11.3 km/h (7 mph)
• Height of Cut: 1" – 4"
• Clutch: 6" brake band
• Blades: 2 blades (each 22")
• Frame: Fully welded 1.5" x 1.5" steel tubing (0.1875" wall thickness)
• Weight: 517 kg (includes traction unit & deck)
• Warranty: 2 years / 1200 hours (limited)
