Description:

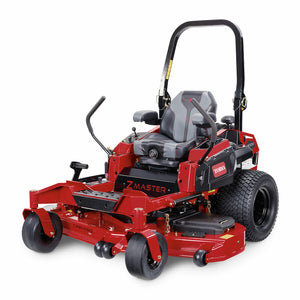

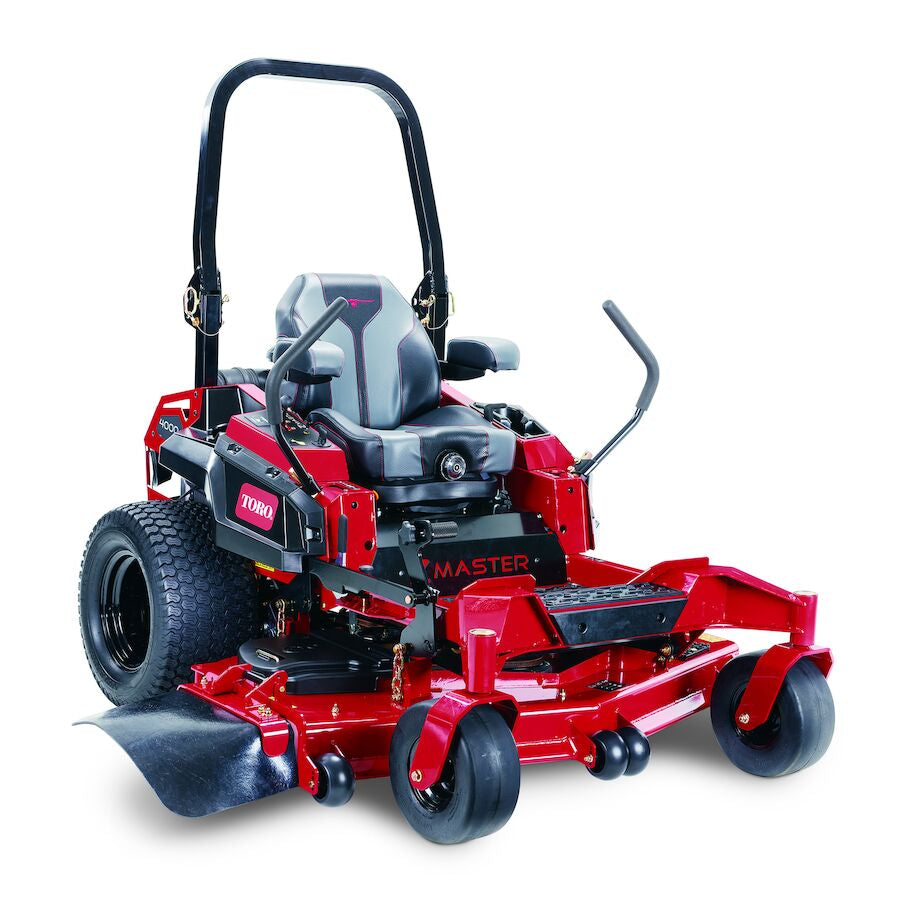

The Z-Master 4000 zero-turn mower is a force to be reckoned with. Built tough with a powerful 25.5 hp* Kawasaki FX801V engine, heavy-duty commercial grade hydros, 26 in. Voodoo Trac™ Tires, LED headlights, and a 60 in. 7-Gauge High-Strength Steel TURBO FORCE® cutting deck to take on any job. And with an hour meter, USB ports, phone holder, and a cup holder, you’ll have everything you need from the comfort of the deluxe suspension seat to help you power through long days.

Features:

• Survey the task from a higher-vantage-point with the 26" Voodoo Trac™ drive tires.
• Powerful illumination for after-hours work with LED headlights.
• Go full throttle and have confidence in the precise cut from our TURBO FORCE® deck with I-beam front end paired with tubular chassis and bumper.
• Keep your phone and drink at arm's reach.
• Keep tabs on time and keep devices powered up with the hour meter and USB ports.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

• Product Type: Zero Turn Mower
• Product Use: Commercial
• Start Type: Electric
• Fuel Type: Gasoline
• Hour Meter: Standard
• Lighting: LED Headlights
• Box Dimensions: 91 in. x 70 in. x 52.5 in. / 231.1 cm x 177.8 cm x 133.4 cm

Engine

• Brand: Kawasaki
• Model: FX801V
• Horsepower: 25.5 hp* (Listed as 31.0 hp in some sources – please confirm)
• Displacement: 852 cc
• Air Filter: Heavy-Duty Donaldson® Canister-Style

Drive System

• Transmission: ZT-4400 Integrated Pumps and Wheel Motors
• Drive Tires: Voodoo Trac 26 in. x 12 in. - 12 in. (66 cm x 30.5 cm - 30.5 cm)
• Caster Tires: 15 in. x 6.5 in. - 6 in. (38 cm x 16.5 cm - 15.2 cm) Pneumatic
• Forward/Transport Speed: Up to 12.0 mph / 19.3 kph

Cutting System

• Deck Size: 60 in / 152 cm
• Deck Design: 7-Gauge High-Strength Steel TURBO FORCE®
• Deck Material: 7 Gauge High-Strength Steel
• Blades: 0.204 in. (0.5 cm) Heat-Treated Steel
• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Height of Cut: 1.5 - 5.5 in. / 3.8 - 14.0 cm
• Foot Operated Height of Cut: Standard
• Discharge Chute: Rubber
• Clutch: Electromagnetic

Operator Comfort & Controls

• Seat: Handcrafted Deluxe Suspension Seat with Arm Rests
• Steering Controls: 1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened

Durability & Maintenance

• Spindle Housing: 9 in. / 22.9 cm Diameter Aluminum
• Spindle Bearings: Maintenance-Free

Safety

• Roll-Over Protection System (ROPS): Folding; Standard

Fuel

• Fuel Capacity: 10 gal. / 37.8 L / 40 Qt.

Weight

• Total Weight: 1,193 lbs / 541.1 kg
