DESCRIPTION

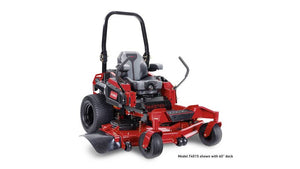

4000 Series 52" (132 cm) 25.5 HP 852cc (74002)

The Z-Master 4000 zero-turn mower is a force to be reckoned with. Built tough with a powerful 25.5 hp* Kawasaki FX801V engine, heavy-duty commercial grade hydros, flat-free semi-pneumatic caster tires, 24" Turf Tires, and a 52" 7-Gauge High-Strength Steel TURBO FORCE® cutting deck to take on any job. And with an hour meter, USB ports, phone holder, and a cup holder, you'll have everything you need from the comfort of the deluxe suspension seat to help you power through long days.

HIGHLIGHTS

• Professional quality performance from the 25.5 hp* Kawasaki FX801V engine.
• Have confidence in the precise cut from the 52" TURBO FORCE® deck with I-beam front end paired with tubular chassis and bumper.
• Easy on and off with a step-through front end, deck step plate, and anti-slip floormat.
• Keep tabs on time and keep devices powered up with the hour meter and USB ports.

FEATURES

• TURBO FORCE® Cutting Deck: Enjoy years of reliable performance with a fully tubular frame and 7-gauge steel deck.

SPECIFICATIONS

• Engine: 25.5 hp* Kawasaki FX801V (852cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner
• Fuel Capacity: 10 Gal (37.9 L)
• Blade Tip Speed: 18,500+ ft/min
• Blade Type: .204" (.5 cm) Heat-Treated Steel
• Caster Tires: 13" x 6.5" - 6" (33 x 16.5 - 15.2 cm) Flat-free semi-pneumatic
• Clutch: Electromagnetic
• Deck Design: 52" (132.1 cm) 7-Gauge High-Strength Steel TURBO FORCE®
• Discharge Chute: Rubber
• Drive Tires: Turf Tires 24" x 10.5" - 12" (61 x 26.7 - 30.5 cm)
• Engine Displacement: 852cc
• Foot Operated Height of Cut: Height of Cut
• Ground Speed: Up to 10 mph (16.1 km/h)
• Horsepower: 25.5 hp*
• Hour Meter: Standard
• Ignition: Electric
• ROPS: Folding
• Seat: Deluxe Suspension
• Spindle Bearings: Maintenance-Free
• Spindle Housing: 9" (22.9 cm) Diameter Aluminum
• Steering Controls: 1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened
• Transmission: ZT-4400 Integrated Pumps & Wheel Motors

NOTES:

*The gross horsepower of these engines was laboratory rated at 3,600 RPM by the engine manufacturer in accordance with SAE J1940 and SAE J1995. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly different. **See your retailer for warranty details.
