Description:

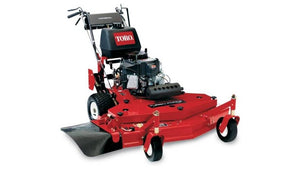

14.5 HP Kawasaki® FS481V 603cc Engine with 36 in. (91 cm) TURBO FORCE cutting technology deck.

Features:

• 48" TURBO FORCE 7-gauge cutting deck w/patented adjustable baffle
• Patented adjustable baffle allows operator to achieve maximum cutting performance
• Massive 9-3/8" (24 cm) diameter spindle
• 5-Speed gearbox with 9 spline coupler
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

• Product Type: Walk-Behind Mower
• Product Use: Commercial
• Start Type: Pull Cord, Recoil
• Steering Controls: Pistol Grip
• Brake System: 6 in. (15 cm) Band Brakes

Engine

• Engine Brand: Kawasaki
• Engine Model: FS481V
• Horse Power: 14.5 hp
• Displacement: 603 cc
• Air Filter: 2-Stage Air Cleaner
• Fuel Type: Gasoline
• Fuel Capacity: 5 gal. / 18.9 L / 20 Qt

Drive System

• Transmission: 5-Speed Gearbox with 9 Spline Coupler
• Drive System: 5-Speed Transmission
• Drive Tires: 13 in. x 6.5 in. - 6 in. (33 cm x 15 cm - 16.5 cm)
• Caster Tires: 9 in. x 3.5 in. - 4 in. (23 cm x 9 cm - 10 cm) Flat-Free
• Forward Speed: Up to 6.2 mph / 9.9 kph

Deck

• Deck Size: 36 in. / 91 cm
• Deck Design: TURBO FORCE
• Blade Tip Speed: 18,000 ft/min / 5,486 m/min
• Discharge Type: Side discharge standard
• Discharge Chute: High-Performance 5/16" (8 mm) Rubber
• Number of Blades: 3
• Height of Cut: 1.0 - 4.25 in. / 2.5 - 10.8 cm
• Adjustable Discharge Baffle: Standard
• Adjustable Discharge: Standard

Chassis

• Spindle Housing: 9.375 in. / 23.8 cm Diameter Cast Iron

Dimensions & Weight

• Box Dimensions: 78 in. x 49.5 in. x 52.25 in. / 198.1 cm x 125.7 cm x 132.7 cm

Compliance

• CARB Compliant: Yes
