Description:

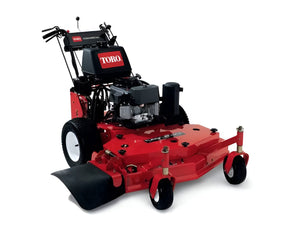

36" (91 cm) Fixed Deck Hydro Drive Pistol Grip (50 State) (39934)

Highlights

• 36" (91 cm) TURBO FORCE 7-gauge deck
• 14.5 HP* Kawasaki® FS481V 603cc
• Hydrostatic pump & motor drive provides instant forward and reverse without shifting
• Large 16" (40.6 cm) drive tires for excellent traction and superior floatation.

Features

• Exclusive TURBO FORCE Deck: High-capacity 7/10 guage TURBO FORCE deck delivers unsurpassed strength, a superior cut, and increased productivity in extreme mowing conditions. Easily handles the most demanding conditions and resists damage from impacts and abrasion.

Specifications

• Engine: 14.5 HP* Kawasaki® FS481V 603cc
• Fuel Capacity: 5 gallons (19 L)
• Height of Cut: 1" to 4-1/4" in 1/8" increments (2.5 cm to 10.8 cm in 3 mm increments)
• Number of Blades: 2
• Starter: Recoil
• Mulch, Bag, Side Discharge: Side-discharge standard
• Air Filter: 2-Stage Air Cleaner
• Adjustable Discharge: Standard
• Blade Tip Speed: 18,500 ft/min (5639 m/min)
• CARB Compliant: Model 39934
• Caster Tires: 9" x 3.50-4" (23 x 9 - 10 cm) Flat-free
• Deck Design: 36" (91.4 cm) Side Discharge
• Discharge Chute: High-performance 5/16" (8 mm) rubber
• Drive Tires: 16" x 6.50-8" (40.6 x 16.5 - 20.3 cm)
• Engine Displacement: 603cc
• Ground Speed: 6.2 mph (10 km/h) fwd; 2.2 mph (4 km/h) rev
• Height: 41" (104 cm)
• Hydraulic Drive: Twin Hydro-Gear® Pumps
• Hydraulic Fluid: Premium Synthetic
• Length: 74" (188 cm)
• Spindle Housing: Cast iron with 9-3/8" (23.8 cm) base
• Steering Controls: Pistol Grips
• Transmission: Hydrostatic
• Width: 37.1" (94 cm)
• Weight: 460 lbs (208 kg)
