Description:

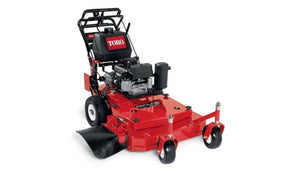

14.5 HP Kawasaki® FS481V 603cc Engine with 32 in. (81 cm) deck. Model shown 30692.

Features:

• Exclusive T-Bar steering controls - easy to use and reduces fatigue
• 5-Speed gearbox with 9 spline coupler
• Massive 9-3/8" (24 cm) diameter spindle
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

• Product Type: Walk-Behind Mower
• Product Use: Commercial
• Start Type: Pull Cord, Recoil
• Steering Controls: T-Bar
• Brake System: 6 in. (15 cm) Band Brakes

Engine

• Engine Brand: Kawasaki
• Engine Model: FS481V
• Horse Power: 14.5 hp
• Displacement: 603 cc
• Air Filter: 2-Stage Air Cleaner
• Fuel Type: Gasoline
• Fuel Capacity: 5 gal. / 18.9 L / 20 Qt.

Drive System

• Transmission: 5-Speed Transmission
• Drive Tires: 13 in. x 5 in. - 6 in. (33 cm x 13 cm - 15 cm)
• Caster Tires: 9 in. x 3.5 in. - 4 in. (23 cm x 9 cm - 10 cm) Flat-Free
• Forward Speed: Up to 6.2 mph / 9.9 kph

Deck

• Deck Size: 32 in. / 81 cm
• Deck Design: Side Discharge
• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Discharge Chute: Rubber
• Discharge Type: Side discharge standard
• Number of Blades: 2
• Height of Cut: 1.0 - 4.25 in. / 2.5 - 10.8 cm

Dimensions

• Box Dimensions: 78 in. x 49.5 in. x 52.25 in. / 198.1 cm x 125.7 cm x 132.7 cm

Compliance

• CARB Compliant: No
