Description:

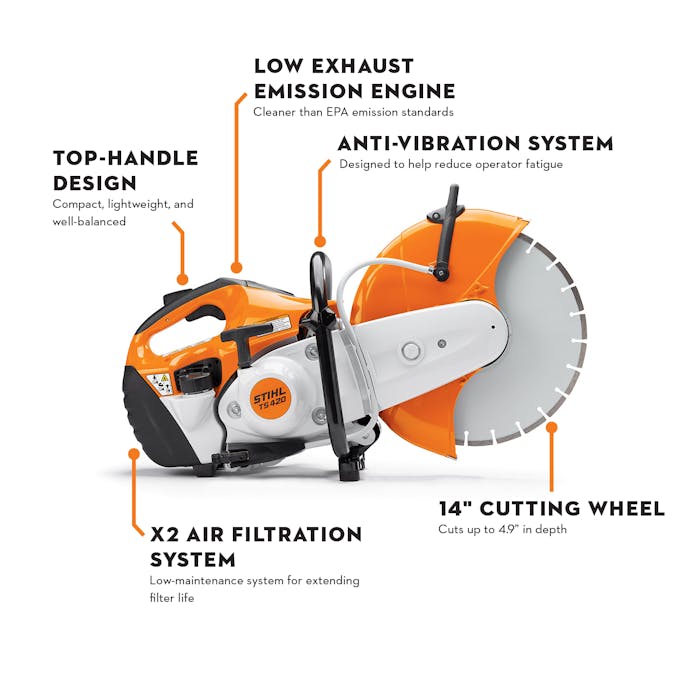

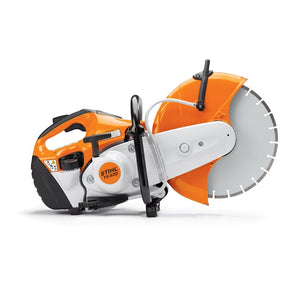

The TS 420 is so popular, it could possibly be called “the standard” to which other cut-off machines are compared. Users like it because it is compact, lightweight, reliable, and proves itself day in and day out, all day long. The TS 420 features all the high-performance features of the TS 410 — including an X2™ Air Filtration System for a clean and smooth-running engine and virtually maintenance-free filters. With the added benefit of a 14” cutting wheel, it will handle cuts up to 4.9 inches in depth. This cut-off machine backs up its larger cutting capacity with a ton of usability features.

Features:

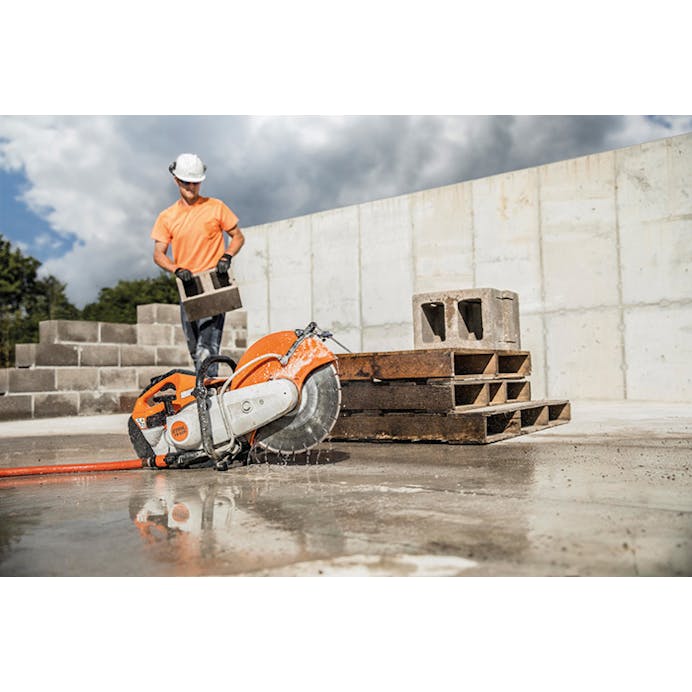

• Water Connection – Features a water connection with shut-off valve and quick connector for efficient dust control during cutting.
• Ergonomic Grip – The ergonomic top-handle bar design provides a comfortable, secure grip in any working position, enhancing control and reducing fatigue.

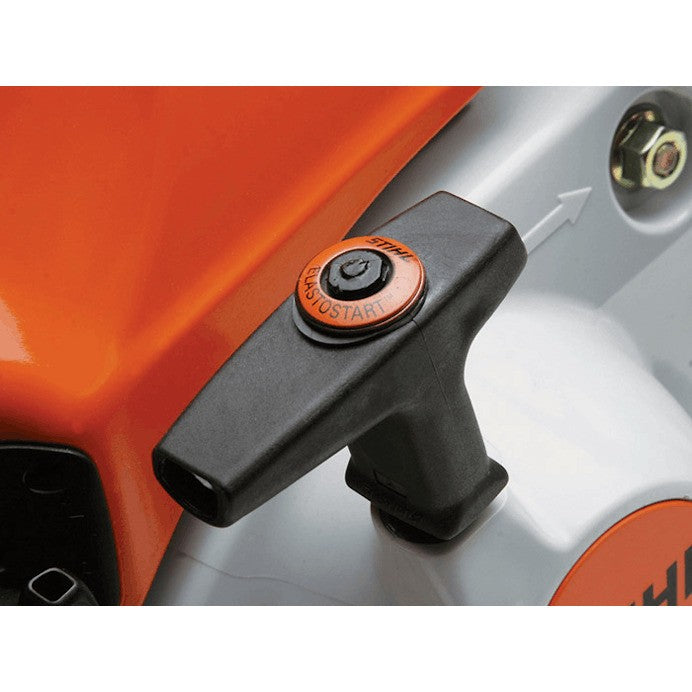

• STIHL ElastoStart™ – This innovative starter handle incorporates a built-in shock absorber to reduce the effort required when pulling the starter cord. The ElastoStart™ grip smooths out the sudden peak forces typically felt during engine compression, making starting easier and more comfortable.

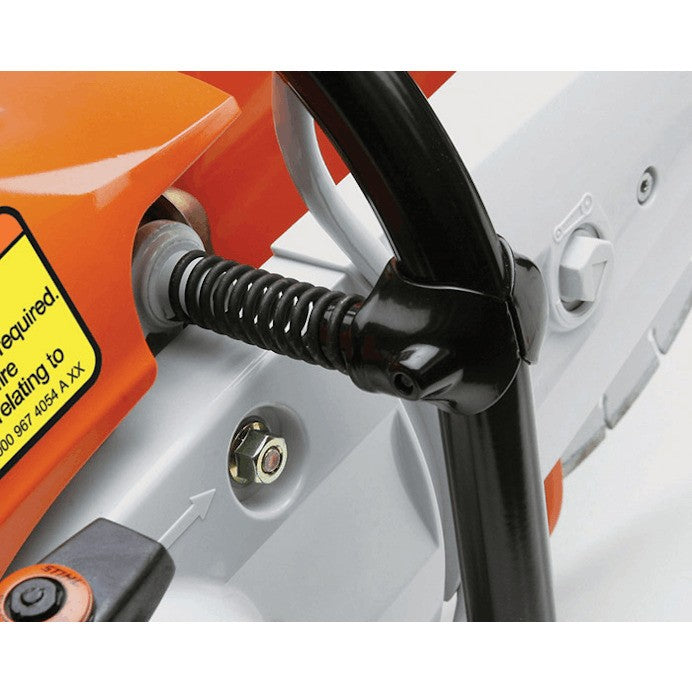

• Anti-Vibration System – STIHL’s engineered anti-vibration system minimizes vibrations transmitted to the operator, reducing fatigue and allowing for extended comfortable use.
• Bayonet-Style Filler Cap – Designed with a retainer to allow easy handling and secure closure even when wearing gloves.
• Semi-Automatic Belt Tensioning – This feature ensures consistent belt tensioning, extending the service life of belts and shaft bearings by maintaining optimal tension during use.

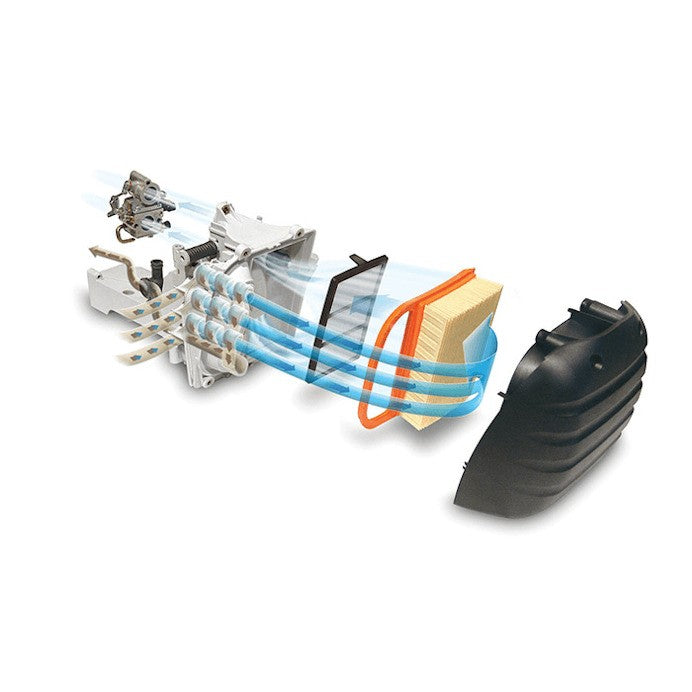

• X2™ Air Filtration System – Revolutionizing cut-off machine performance, the X2™ Air Filtration System removes 80% of dust particles before they reach the primary and secondary filters. This swirling pre-cleaning action allows filters to last up to a year under normal cutting conditions, providing virtually maintenance-free operation with a remarkable 99.96% cleaning efficiency.
• IntelliCarb™ Compensating Carburetor – Automatically adjusts the air/fuel mixture when the air filter becomes restricted or partially clogged, maintaining optimal engine RPM. By using air from the clean side of the filter, IntelliCarb™ compensates for reduced airflow, unlike conventional carburetors that rely on air from the dirty side.

Specification:

• Power Source: Gas
• Weight: 21.2 lbs.
• Maximum Cutting Depth: 4.9 in.
• Maximum Wheel Size: 14 in.
• Maximum Spindle Speed: 5,350 rpm
• Arbor Size: 0.787 in.
• Engine Speed: 9,000 rpm
• Engine Power: 4.4 bhp
• Fuel Capacity: 24 oz.
• Displacement: 66.7 cc
