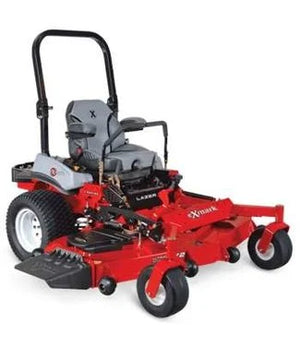

EXMARK EXQZX735GKC48300 ZERO-TURN MOWER

INFORMATION The powerful Kohler engine, upgraded 48-inch UltraCut Series 3 cutting deck and heavy-duty Hydro-Gear transmission enable Quest X-Series to cut at up to 8 mph. When combined with the incredible maneuverability of the low center of gravity frame design and the smooth rolling of the large drive and caster tires, Quest X-Series offers an unbeatable combination of performance and value. A new armrest-equipped operator seat provides a smooth ride over bumpy lawns, while a deeper floor pan offers increased legroom for the operator. A standard deck step is included to ease mounting and dismounting the machine, while an integrated hitch and tools-free belt shields ease access for service and maintenance. However, with just two annual grease points and low-maintenance integrated hydro transmissions, servicing the Quest X-Series isn’t something you’ll need to do often. That’s more time for you to do the things you love.

ULTRACUT SERIES 3 CUTTING DECK Our 5-inch deep UltraCut Series 3 cutting deck features fabricated and welded construction, with heavy-duty maintenance-free sealed bearing cutter housings. Our exclusive flow-control baffles deliver Exmark’s signature cut quality. COMMERCIAL-GRADE TIRES Aggressive 22-inch drive tires provide superior traction and a smooth ride when combined with the large 13x6.5-inch caster tires.

ENGINE PROTECTION The rear of the Quest X-Series model is protected by a steel guard which provides increased protection for vital engine components. INTEGRATED HYDRO TRANSMISSION The upgraded Hydro-Gear transmissions feature an integrated design, which reduces maintenance and increases reliability, while providing forward speeds of up to 8 mph. UPGRADED OPERATOR SEAT The contoured operator seat features deep padding and standard armrests. When combined with the deeper floor pan, which provides more legroom, the Quest X-Series keeps you comfortable while mowing.

SPECIFICATIONS Engine MakeKohler KT735 Deck Size48" Deck StyleFull-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch. Cutting Height1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.50" (1.3 cm) increments, adjustable from operator's seat. Hydro Drive SystemDual Hydro Gear ZT2800, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters. SpeedInfinitely variable speed selection from 0–8.0 mph (12.9 kmph) forward, 0–5.0 mph (8.0 kmph) reverse. Fuel Capacity3-gallon (11.0-L), single fuel tank with single fill locations ControlsHydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment. Seat ComfortCommercial grade, high back contoured foam padded with arm rests. Hinged mounting and spring suspension. Adjustment is fore and aft for operator position. FeaturesUltraCut Series 3 Cutting Deck, Engine hour meter, cup holder and hitch Front Casters Drive Tires
