Description:

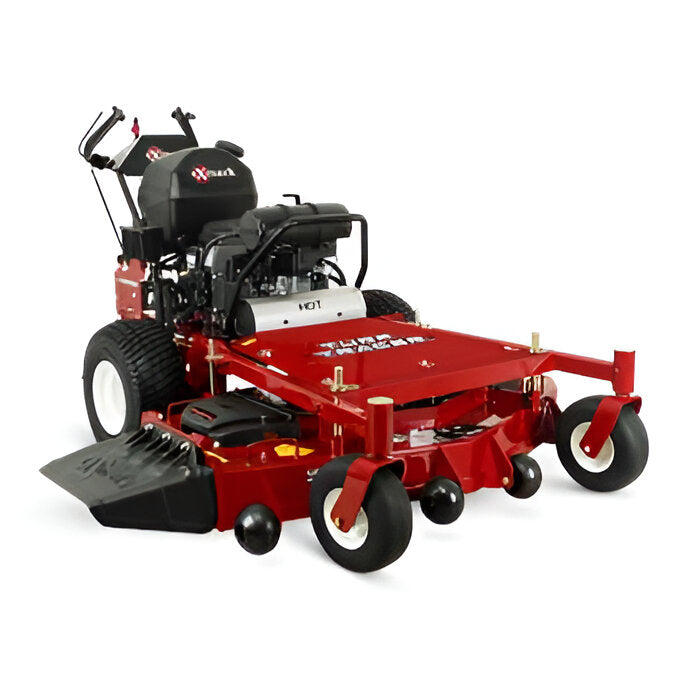

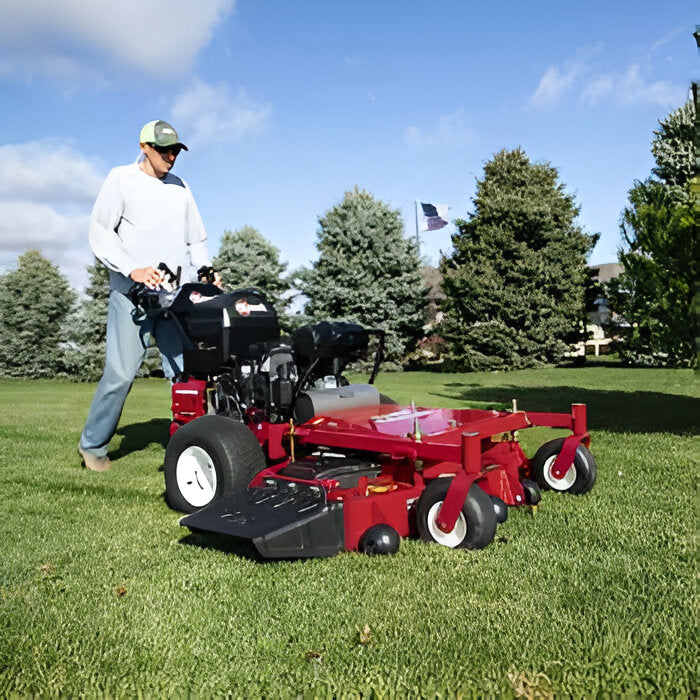

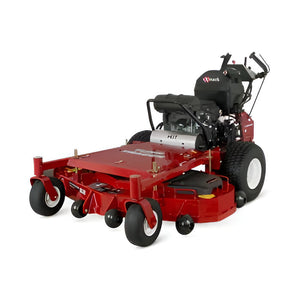

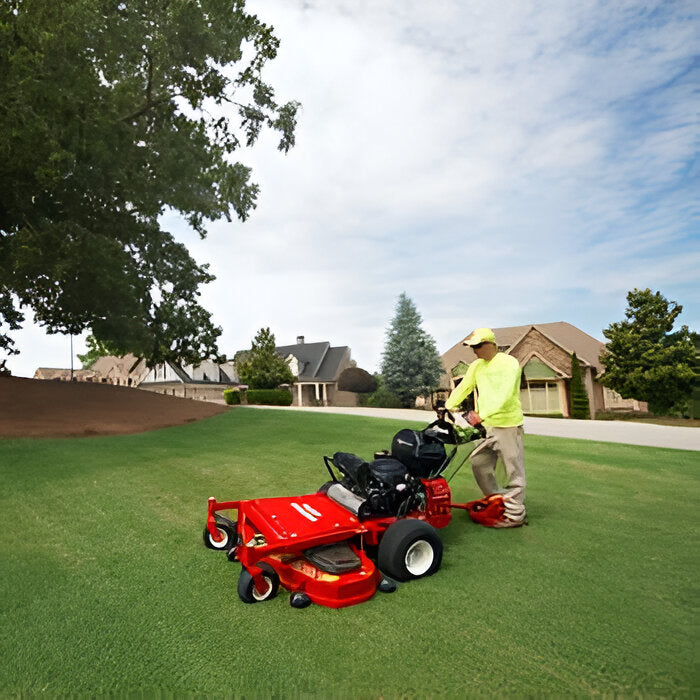

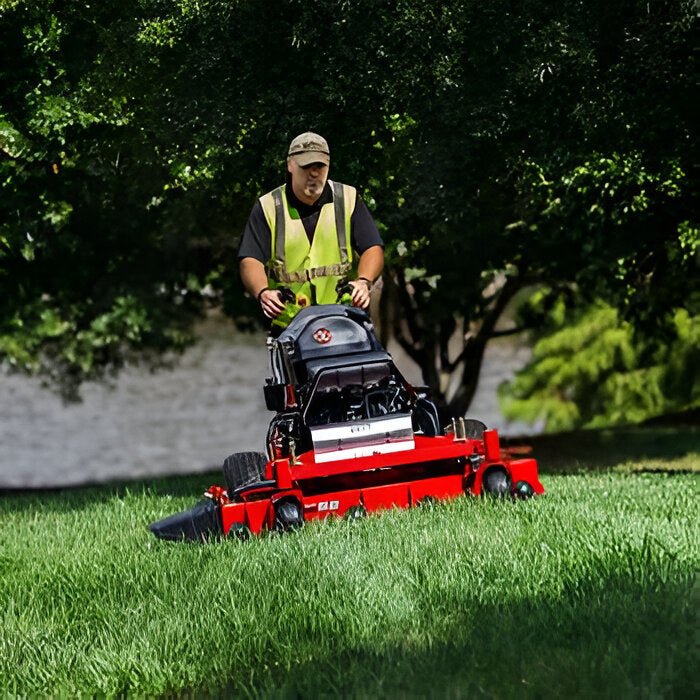

The Turf Tracer X-Series represents the definitive, full-featured hydro mower. Whether you choose the 52- or 60-inch cutting deck, the UltraCut™ Series 4 with splined spindle blade driver is up to the toughest jobs. As are the X-Series engines—Kohler® EFI, Kawasaki® and Kohler EFI Propane. Ground speeds up to 6.75 mph, and up to 2.25 in reverse, also rank the Turf Tracer X-Series among the most productive mowers in its class.

Specification:

Engine:

• Brand: Kohler
• Model: ECV732
• Series: Command™ EFI
• Displacement: 747 cc
• Speed: 3,600 rpm
• Fuel System: Electronic Fuel Injection (EFI)
• Fuel Type: Gas
• Fuel Capacity: 5 gallons (18.9 L)
• Air Filter: Heavy-duty canister air filtration system

Transmission:

• Brand: Hydro-Gear
• Type: Hydrostatic
• Speeds: Infinitely Variable
• Drive: Hydro-Drive
• Drive Description: Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1" (2.54 cm) tapered shafts

Deck:

• Width: 60 inches
• Construction: 10-gauge top, formed and continuously seam welded; 7-gauge side skirt; 7-gauge welded spindle mounting locations
• Style: Floating Deck
• Style Description: Full-floating UltraCut Series 3, side discharge standard, with molded discharge chute and optional bagging or mulching
• Lift: Manual lift with hairpin from hole to hole
• Cutting Heights: 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments
• Blade Spindles: No maintenance, sealed and non-greasable; 7.75" diameter cutter housing; 25 mm (0.98") diameter spindle shaft
• Blade Tip Speed: Approximately 18,500 fpm
• Blades: 3 blades, 20.5" length
• Deck Construction: 10-gauge top, 7-gauge side skirt, 7-gauge spindle mounting locations

Steering & Control:

• Starter: Electric
• Steering Control: Hydro drive with Enhanced Control System (ECS); forward/reverse, left/right, or zero-turn
• Parking Brake: Lever-actuated mechanical compression
• PTO Engagement: Electromagnetic 200 ft-lbs clutch
• Drive Wheel Release: Allows movement without engine running

Tires:

• Front Caster Tires: 11 x 4.0-5, smooth tread, semi-pneumatic
• Drive Tires: 18 x 8.5-8, 4-ply Turf Master®

Electrical:

• Battery: 12-volt with 20-amp alternator

Safety:

• Safety Package: Operator Presence Controls (OPC); speed control lever must be in neutral and blades disengaged to leave operator’s position without stopping engine

Dimensions:

• Width: 73.0 in. (185.4 cm)
• Height: 45.0 in. (114.3 cm)
• Length: 104.8 in. (266.2 cm)
• Curb Weight: 840 lbs

Additional Features:

• Engine Hour Meter: Enhanced
• Deck Lift: Manual, adjustable from hole to hole for position
• Fuel Indicator: None
• Carb Compliant: No
• Drive Description: Twin Hydro-Gear pumps, high-efficiency Parker/Ross motors
