Description:

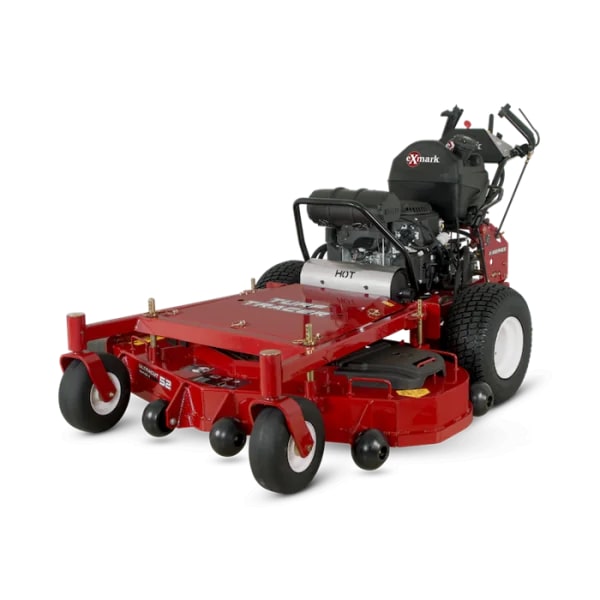

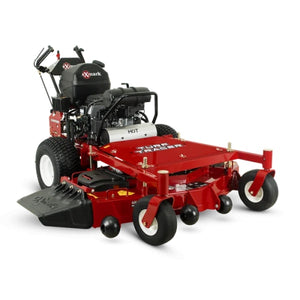

By virtually any measure, the Turf Tracer X-Series represents the definitive, full-featured hydro mower. Whether you choose the 52- or 60-inch cutting deck, the UltraCut™ Series 4 with a splined spindle blade driver is up to the toughest jobs. As are the X-Series engines—Kohler® EFI, and Kawasaki®. Ground speeds up to 6.75 mph, and up to 2.25 in reverse, also rank the Turf Tracer X-Series among the most productive mowers in its class.

Features:

• Patented Enhanced Control System (ECS): Recent university tests showed landscape professionals prefer our control system to all others on the market.
• Floating Deck: Full-floating UltraCut™ deck. Side discharge standard, with molded discharge chute and option to bag or mulch.
• Superior Air Filtration: This series comes standard with heavy-duty canister air filtration systems for longer engine life, more efficient performance and simple maintenance.
• Clutch Performance: A large-capacity, electromagnetic PTO clutch provides excellent durability for extra-long life.
• Superior Cut Quality: UltraCut™ Series 4 deck
• Deck Options: With the Turf Tracer X-Series, you can choose up to a 60-inch deck.

Specifications:

Equipment

• Steering Control: Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right or zero-turn.
• Caster Forks: .38 in. thick caster yoke arms
• Front Caster Tires: 11 x 4.0-5, smooth tread, semi-pneumatic.
• Drive Tires: 18 x 8.5-8, 4-ply Turf Master®
• Safety Package: Operator Presence Controls (OPC). Operator must have speed control lever in neutral and blades disengaged to leave operator's position without stopping engine
• Parking Brake: Lever-actuated mechanical compression.
• Electrical: 12-volt battery with 20-amp alternator.
• Standard Features: Enhanced engine hour meter

Power Components

• Engine Model: FX691V
• Engine Brand: Kawasaki
• Engine Series: V-Twin
• Engine Speed: 3,600 rpm
• Air Filter: Heavy-duty canister air filtration system
• Drive Description: Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1 in. (2.54cm) tapered shafts.
• Speed: Infinitely variable speed selection from 0- 6.75 mph (10.9 kmph) forward, 0-2.25 mph (3.6 kmph) reverse.
• PTO Engagement: Electromagnetic 200 ft-lbs clutch.
• Fuel Capacity: 5-gallon (18.9-L) fuel tank.
• Drive Wheel Release: Allows unit movement without engine running.
• Deck Lift: Manual lift with hairpin from hole to hole for position adjustment.
• Fuel System: Carbureted
• Engine Displacement: 726
• Drive: Hydro-Drive
• Fuel Indicator: None
• Carb Compliant: Yes
• Fuel Type: Gas Carbureted
• Engine Spec: AS23

Decks

• Deck Style: Floating Deck
• Deck Style Description: Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
• Width / Cutting Deck: 52 in.
• Deck Construction: 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 10-gauge formed and welded spindle mounting locations for improved strength.
• Cutting Heights: 1.5 in. (3.8 cm) to 4.5 in. (11.4 cm) in 0.5 in. (1.3 cm) increments.
• Blade Spindles: No maintenance, sealed and non-greasable spindles; 7.75 in.-diameter cutter housing with 25mm (.98 in.) diameter spindle shaft and splined blade driver.
• Blade Tip Speed: Approximately 18,500 fpm.
• Bag Capacity: 3 Blades at 18.00 in. Length
• Blades: 3 Blades at 18.00 in. Length

Engine

• Engine Manufacturer: Kawasaki
• Engine Model: FX691V
• Engine Type: V-Twin, OHV, air-cooled
• Displacement: 726cc

Transmission & Drive

• Transmission Type: Hydro-Drive

Wheels

• Wheel Size: 18 x 8.5-8
• Tire Type: 4-ply Turf Master®

Fuel

• Fuel Capacity: 5 gallons (18.9 L)

Cutting Deck

• Deck Size: 52 inches
• Discharge Type: Side discharge (standard)
• Optional Discharge Types: Bagging and mulching kits available

Dimensions

• Width: 64.8 in. (164.6 cm)
• Length: 84.8 in. (215.4cm)
• Height: 45.0 in. (114.3 cm)
• Curb Weight: 720
