Description:

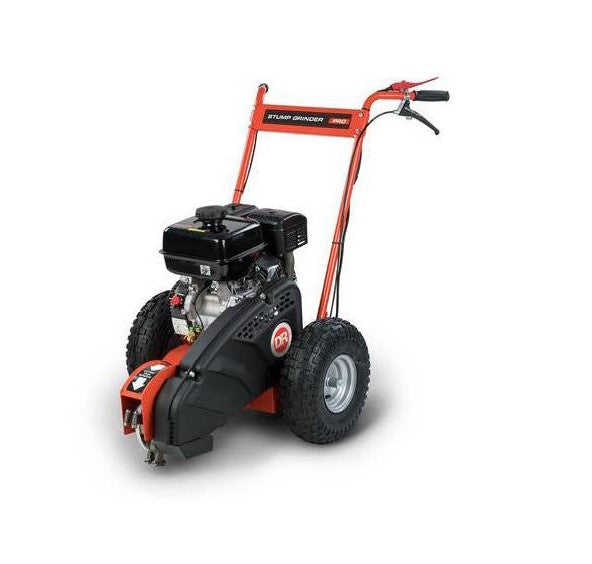

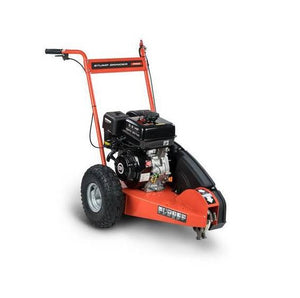

The easiest, fastest method of stump removal! The PRO Stump Grinder demolishes stumps up to 3 feet in width, including tough hardwoods, in minutes. With 8 tungsten carbide-tipped teeth that last up to 3x longer than the competition and a world-class 9.2 HP (15.3 ft-lbs torque) DR OHV engine, this machine is ready to take out any stump.

Features:

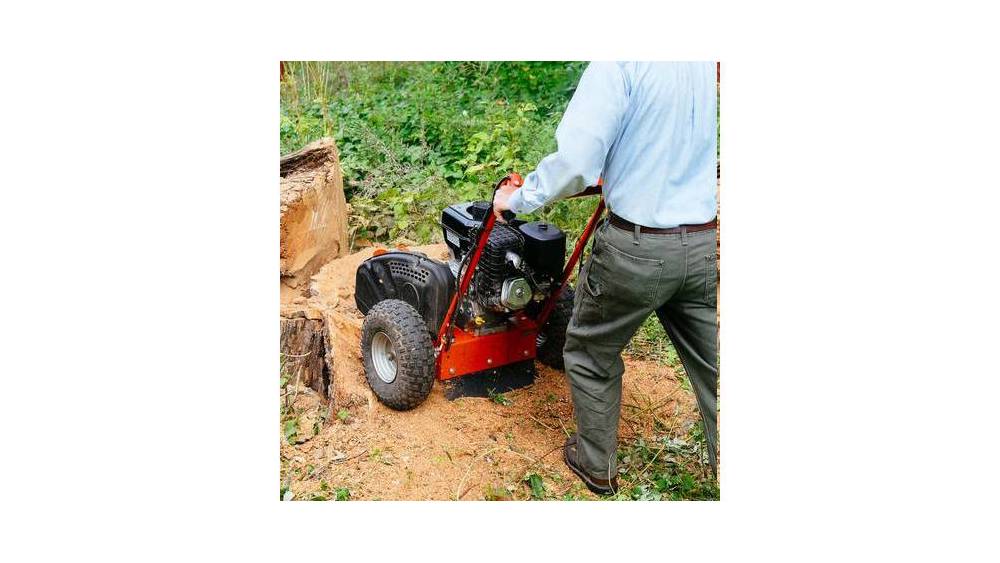

• Simple Operation: Position the DR Stump Grinder over the stump, engage one of the wheel brakes to lock a single wheel in place before engaging the cutting head and pivoting over the stump from side to side, shaving off an inch or so of material with each pass. Reposition the machine as needed to continue removing material until the entire stump is reduced to a pile of wood chips.
• Oversized tires easily roll over rough terrain: The lugged high-flotation tires make for easy transport. Large size tires (15" x 4.75") give the machine full support and help to keep the body of the machine elevated over wood chips during operation.
• Mining-grade teeth last 3x longer: The cutter head features 8, 3-sided Greenteeth® mining-grade tungsten carbide tipped steel teeth. 10 times harder than steel, tungsten carbide is often used for drilling through the toughest materials, including bedrock and each tooth can be rotated twice for added longevity.
• Powerful engine: Our DR OHV engine with 9.2 HP (15.3 ft-lbs gross torque*) spins the cutting teeth at 2,800 rpm – taking 372 “bites” per second and powering through stumps up to 3 feet in diameter. Available with choice of manual- or electric starting.
• Simple hand controls: Control the wheel brakes and engine throttle right from the handlebars. Lock one wheel in place to easily pivot the machine back and forth as you grind away any stump. Unlock and reposition as needed, right from your working position.

Specifications:

Clutch

• Clutch: Yes

Cutting

• Number of Teeth: 8
• Tooth RPM: 2,800

Dimensions

• Handlebar Height: Adjustable at 33 in., 37 in., 40 in.
• Height: 39 in.
• Length: 51 in.
• Shipping Weight: 213 lb.
• Weight: 148 lb.
• Width: 29 in.
• Shipping Dimensions: 54.75 in.L x 35.5 in.W x 45.25 in.H

Engine

• Air Filter: Paper
• Cooling Methods: Air
• Displacement: 301 cc
• Engine Shaft Diameter: 1 in.
• Engine Type: OHV
• Ft Lbs Torque: *15.3 ft-lbs gross torque (per SAE J1940)
• Horsepower: 9.2 HP
• Lubrication: Splash
• Make: DR
• Number Of Cylinders: 1
• Oil Capacity: 37 oz
• Oil Filter: No
• Oil Type: 30W HD
• Pre Cleaner: Yes
• Starting Type: Manual
• Choke/Primer: Choke

Fuel System

• Fuel Capacity: 3.2 qt.
• Fuel Shutoff Valve: Yes

General

• CARB Certified: Yes
• Assembly: Yes
• Optimized Using FEA For Strength: Yes

Wheel Tires

• Brake: Yes
• Dimensions: 15 x 4.75 in.
• Number of Tires: 2
• Tire Size: 15in x 4.75 in.
• Tread: Saw Tooth
• Wheel Brake with Lock: Yes

Warranty

• Engine Warranty: 2 yrs Residential Use / 90 days Commercial
• Machine Warranty: 2 yrs Residential Use / 90 days Commercial

Material

• Cutting Blade Material: Replaceable carbide tipped teeth
• Frame: 12 gauge
• Grease Fittings: Yes
• Handlebar Style: Height adjustable (with tools) 33 in., 37 in., 40 in.
