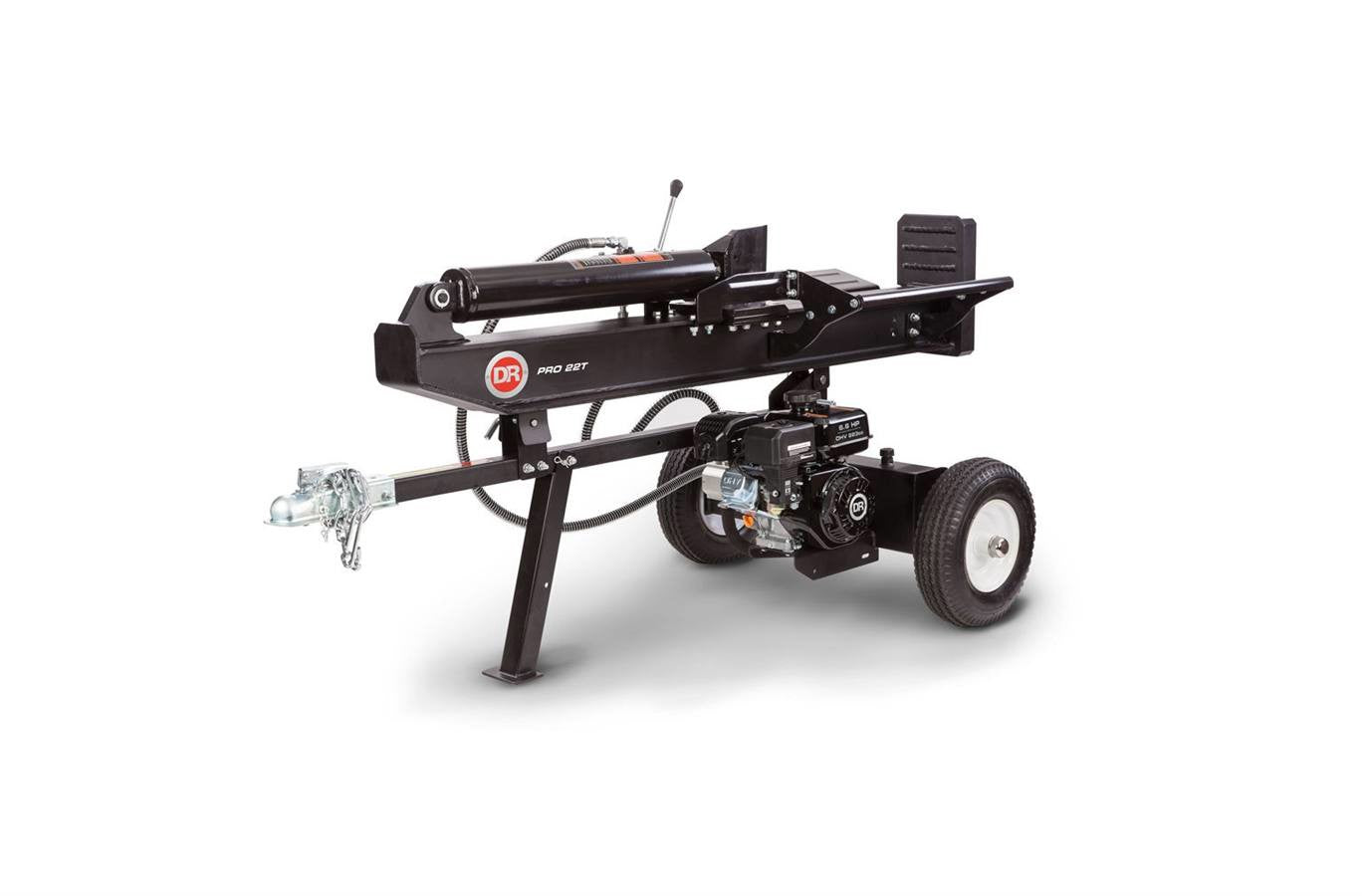

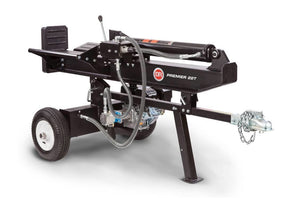

DR Power DR Horizontal-Vertical Log Splitter WH23022DMN

Categories :

Call For Price

Enter your information below:

Add to wishlist

Add to compare

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

DESCRIPTION

PREMIER 22T (22-Ton)

Split big logs in either horizontal or vertical position (especially good for logs that are too heavy to lift). Switch configurations in seconds without tools. DR Engine, 4" cylinder, 16-second cycle time. Road-towable up to 45 mph.

DIMENSIONS

Height: 35.4"
Length: 83.6"
Wedge Height: 7.94"
Wedge Width: 1-3"
Weight: 474 lbs
Width: 40.6"

ENGINE

Ft Lbs Torque: *9.59 ft-lbs gross torque (per SAE J1940)
Horsepower: 6.6 HP
Make: DR

FUEL SYSTEM

Fuel Capacity: 0.95 gals

GENERAL

Assembly: Some assembly required

HYDRAULICS

Cylinder Size: 4" bore, 23.65" stroke
Hydraulic Component Rating: 3400 psi
Pump: 2 Stage, 8.8 / 2.1 gpm
Reservoir: 4 gal

WHEELS TIRES

Number of Tires: 2
Tire Size: 16"

WARRANTY

Engine Warranty: 2 years residential, 90 days commercial
Machine Warranty: 2 years residential, 90 days commercial

SPLITTING

Average Cycle Time: 16 secs
Max Log Diameter: 30"
Max Log Length: 25"
Splitting Force: 22 tons

ENGINE

Engine Manufacturer DR

GENERAL

Ram Pressure 22 tons Log Capacity 25 in.Cycle Time 16 secs Oil Reservoir 4 gal.Wheels 16 in.
