Description

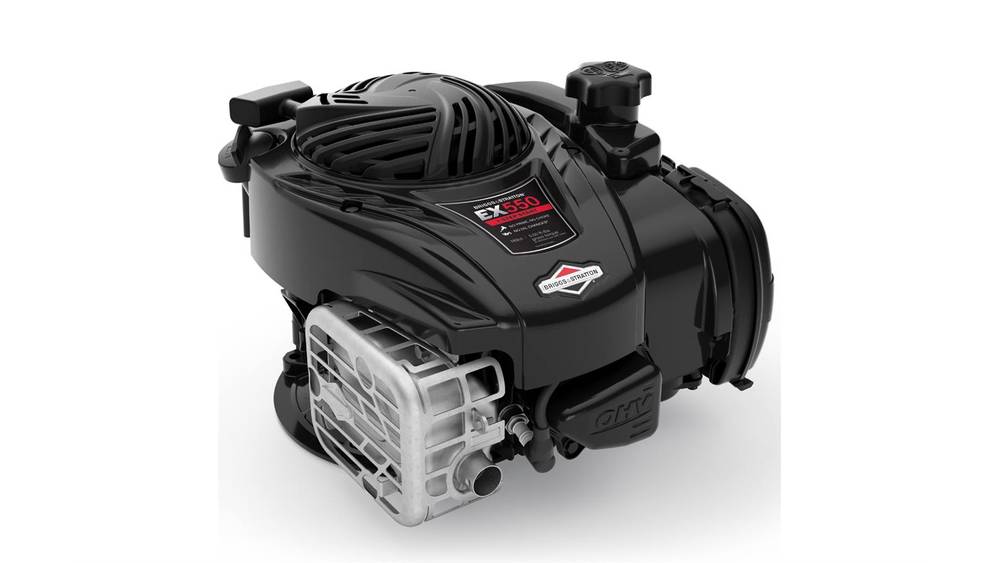

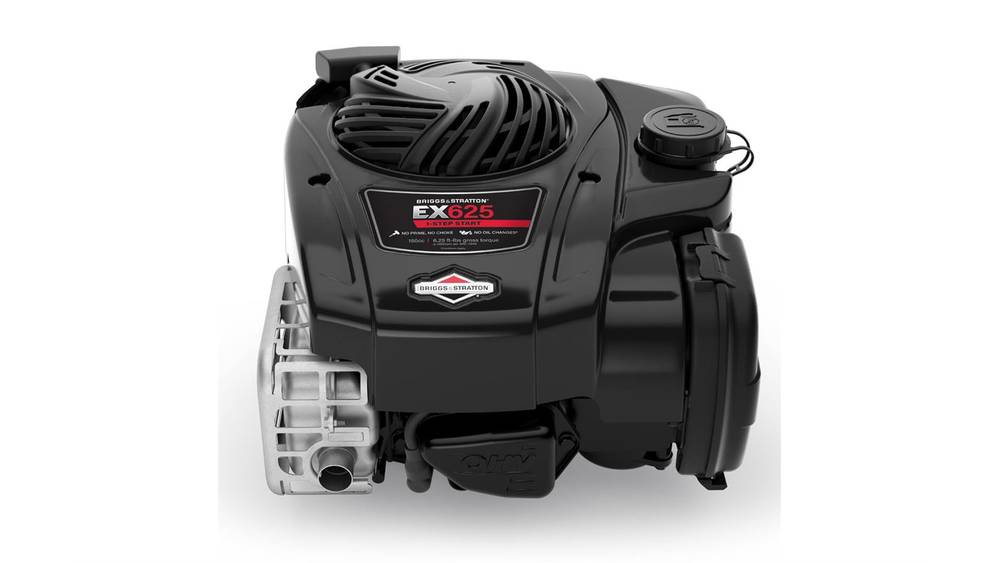

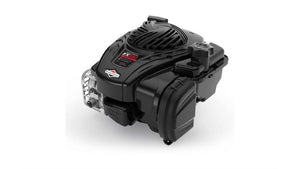

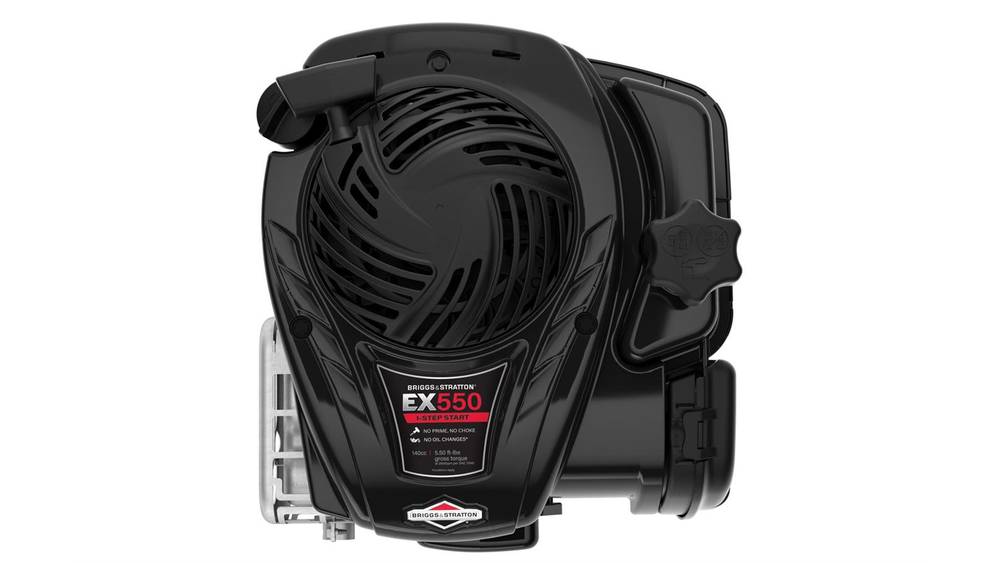

The EX Series push mower engines by Briggs & Stratton combine innovative technology with user-friendly features, making lawn care easier than ever. Designed for hassle-free operation, these engines start with just a pull of the rope or a turn of the key—no priming or choking required. They also utilize special engineering that allows them to run their entire lifespan without needing an oil change. Just add oil as necessary and go, thanks to the Just Check & Add™ system.

Features

• Made in the USA: Constructed with US and global parts.
• Ready Start® Technology: Simplifies starting—no priming or choking needed; just pull for power.
• Super Lo-Tone™ Engine Muffler: Ensures a quieter mowing experience.
• Tool-less Air Cleaner Cover: Provides easy access for air filter changes.

Specifications:

• Model Number: 09P7
• Torque (ft-lbs, gross): 5.5
• Engine Displacement (cc): 140
• Number of Cylinders: Single
• Engine Configuration: Vertical Shaft OHV
• Engine: True
• Dimensions:
• Length (in): 13.8
• Width (in): 12.2
• Height (in): 9.6
• Weight (lbs): 17
• Bore (in): 2.50
• Stroke (in): 1.75
• Engine Fuel: Gasoline
• Fuel Tank Capacity (gal): 0.2
• Oil Capacity (oz): 15
• Lubrication System: Dura-Lube Splash Lubrication
• Oil Filter: N/A
• Starter: ReadyStart® Starting System
• Air Filter: Oiled Foam or Dual-Sealing Paper
• Muffler: Lo-Tone™ or Super Lo-Tone™
• Fuel Shutoff Valve: N/A
