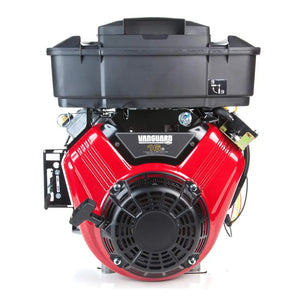

Briggs and Stratton Engine 305442-0527-F1

Description:

Briggs & Stratton 305442-0527-F1 horizontal Vanguard engine is 479cc and puts out 16.0 HP (maximum horsepower). This V-Twin Vanguard has a 1″ x 3″ crankshaft with a 1/4″ keyway and comes equipped with a recoil starter and fuel tank. Briggs & Stratton Vanguard engines are made to be lightweight and compact while taking on the most demanding commercial jobs. Featuring dependable components like float feed carburetors, cast iron cylinder sleeves and full pressure lubrication, Vanguard engines provide reliable power in a smaller space. Common applications include golf/turf equipment, power packs/generators and commercial mowers. Buyer protection package provides three-year limited consumer engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.

Specifications:

• Brand: Briggs & Stratton
• Model Number: 305442-0527-F1
• Warranty: 3 Year Consumer & Commercial
• Shipping Weight: 89 pounds
• Displacement: 479cc
• Starter Type: Recoil
• Crankshaft Orientation: Horizontal
• Crankshaft Type: Straight
• Fuel System: Gasoline
• Gear Reduction: No
• Crankshaft Dimensions: 1″ x 2-29/32″
• Crankshaft Length: 2-29/32″
• Crankshaft End Tapped Size: 3/8 – 24
• Crankshaft Rotation Direction (from PTO side): Counterclockwise
• Bearing Type: Ball
• Cylinders: 2
• Cylinder Bore Type: Cast Iron Sleeve
• Air Cleaner Type: Dual Element
• Fuel Tank: Yes
• Fuel Pump: Yes
• Oil Cooler: No
• Oil Capacity: 48 ounces
• Low Oil Alert: No
• Low Oil Shutdown: No
• Ignition System: Electronic
• Carburetor Type: Float
• Choke Control: Manual and Remote
• Max RPM: 3600
• Charging System: None
• Bolt Circle: 5, 6-1/2, 7-3/4
• Flywheel: Heavy
• Notes: Engine Notes
• PTO Height: 5 – 1/4 inches
