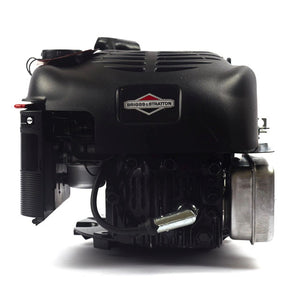

BRIGGS AND STRATTON ENGINE 126M02-1031-F1

BRIGGS AND STRATTON ENGINE 126M02-1031-F1

Categories :
Call For Price
GET MORE INFO
×

Enter your information below:

Add to wishlist
Add to compare

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Features


  • Model# 126M02-1031-F1 - 25mm x 3-5/32" Crankshaft, Tapped 7/16-20, 3/16" Straight Keyway
  • For walkbehind / push mowers; Superceded by model 104M02-0028-F1
  • Briggs & Straton 675 Series™ Single Cylinder Air-Cooled 4-Cycle Electric Start Gas Engine
  • Produces 6.75ft-lbs of torque* - Power levels are stated gross torque per SAE J1943
  • Aluminum-Alloy Kool Bore™ Engineering
  • Keeps the engine running cooler for maximum productivity
  • Float-Style Carburetor w/ Primer
  • Provides consistent starting even when engine is cold
  • Magnetron® Electronic Ignition System
  • Extremely reliable design, for consistent starting while being maintenance-free
  • Large Diameter Recoil Starter
  • With mechanical compresson release for easier starting with less effort
  • Mechanical Torque Control
  • Maximizes usable power of the engine when high torque is required
  • Maxi-Clean™ Automotive-Type Air Filter
  • Pleated paper design, provides excellent debris filtration
  • Aluminized Lo-Tone™ Muffler
  • Decrease engine noise during operation
  • 2-Year Consumer Warranty


Specifications


126M02-1031-F1

Engine

Engine Series

675 Series

Engine Style

Vertical

Engine Type

4-Cycle OHV

Cylinders

1

Cooling System

Air

Dry Weight

28 Lbs

CC

190 CCs

Max Torque

6.75 Lbs

Cylinder Bore Type

Aluminum

Bore

2.69 Inches

Stroke

2.04 Inches

Systems

Starting System

Recoil Only

Ignition System

Electronic Spark

Lubrication

Lubrication

Splash

Oil Filter

No

Oil Capacity

20 oz

Intake/Exhaust

Fuel

Gas

Carburetor

Float

Muffler

Included

Air Cleaner

Dry (Paper)

Fuel Tank Size

.25 Gallons

Fuel Tank

Included

Crankshaft

Crankshaft Rotation Direction

Counterclockwise

Shaft Size

25mm x 3-5/32 Inches

Crankshaft Type

Straight

Crankshaft Diameter

25 mm

Crankshaft Length

3-5/32"

Crankshaft End Tapped Size

7/16"-20

Crankshaft Keyway Width

3/16 Inches

Overview

Weight

28 Pounds

Made in USA

Yes

Consumer Warranty

2 Years

Commercial Warranty

90 Days

Product Length

12.175 Inches

Product Width

12.932 Inches

Product Height

9.726 Inches

UPC

024847184839
