Description:

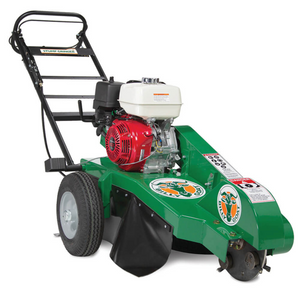

The SG1301H & SG1301HGT Stump Grinder offers a host of category-leading features such as the ability to grind from 24 in. above grade to 16 in. below grade. The unit features wide chip guarding, a long cutter head reach, an extended handle for better swing leverage when grinding, and a double-welded cutter head guard as well as reinforced frame. The machine is well balanced over the axle and easy to swing while in operation and transporting to / from the job site. The machine is simple to load via ramps onto a pickup truck or trailer and is powered by a Honda engine driving a 15.5", 35 lb. cutting wheel with replaceable carbide teeth for the ultimate in efficient stump removal.

Features:

Extended Angled Down Frame

• Description: The extended angled down frame is designed for a longer reach and improved grinding performance. Its angle towards the cutter head allows for better access and more efficient stump removal compared to other models on the market.

Dual Handle with Long Reach

• Description: Equipped with dual hand holds and easy bale access, this feature simplifies cutter head activation from various handle positions and cutting depths. The long handle design provides the operator with enhanced leverage for more effective stump grinding.

Chip Guarding

• Description: Side and rear chip curtains are included to protect the operator from flying wood chips, ensuring a safer working environment.

Belt Span & Belt Guard

• Description: A longer belt span combined with a durable belt guard increases the lifespan of the belt and extends the intervals between service needs.

Eight Carbide Cutting Teeth

• Description: The grinder features eight carbide cutting teeth housed in robust holders. These teeth are designed for durability and ease of replacement. An optional Green Tooth Kit (Part No. 80107904) is available for enhanced performance.

Emergency Stop Switch

• Description: This switch adds an additional layer of safety by allowing the operator to quickly stop the unit in case of an emergency.

Foot Mount

• Description: The foot mount provides leverage, making it easier to start the unit and manage its operation.

Brake Release Lever

• Description: This lever allows for safe transport and operation by setting and releasing the brake.

Locking Drum Brake

• Description: The locking drum brake keeps the unit stationary while the cutting head is moved back and forth across the stump, ensuring stability during operation.

Handle Adjust Lever

• Description: This lever adjusts the handle height to optimize stability and control for the operator during grinding tasks.

 Specifications

• Engine: Honda
• Displacement: 389 cc
• Disc RPM at Engine Speed (2500 RPM): 1575 RPM
• Drive Type: Push
• Cutter / Wheel:
• Diameter: 14 inches
• Thickness: 3/8 inch
• Cutting Capacity:
• Above Grade: 24 inches
• Below Grade: 16 inches
• Teeth: 8 tungsten carbide
• Length Range: 85 to 100.5 inches
• Width: 30.06 inches
• Height Range: 37.5 to 59 inches
• Weight: 330 lbs
• Wheels: 4.8 x 8 inches
