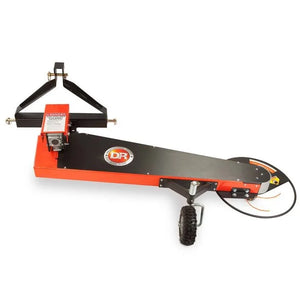

Features for the DR Power TT130003PN Trimmer

Spring-Loaded Mowing Arm

The spring-loaded mowing arm allows the trimmer head to automatically deflect around fence posts, mailboxes, walls, and other obstacles. This allows you to trim right up close to just about anything on your property!

Steel Guard

The 23" diameter steel guard ensures that you'll trim just as close to fence posts as you need to, but not damage them. The guard allows the trimmer head to cut within half-inch of any obstacle.

Adjustable Height Anti-Scalping Wheel

The adjustable-height anti-scalping wheel prevents damage to the turf by keeping the trimmer head always at a constant distance from the ground. Adjust the height to make precise cutting height changes. Cutting height can be adjusted between 1.5" and 3.5".

Quick-Lock™ Trimmer Head

The quick-Lock Trimmer Head makes replacing the cord on your Trimmer Mower faster and easier than ever! It takes just seconds — without tools — to insert new cord into the trimmer head.

Pivoting Deck

Follow the contours of the land with the unique pivoting deck. Ideal for anywhere with uneven ground, the pivoting deck ensures professional-quality results — an even trim with no scalping!

Super-duty Cutting Cords

All DR Trimmer Mowers accept super-thick 175 mil cutting cords—the thickest, longest-lasting in the industry (so you spend more time mowing and less time changing cords).

Specifications

CUTTING

Cutting Height: 3" - 7-1/2" (3"-4-1/2" on the head, plus 3" on the wheel in 1/2" increments)

Cutting Width: 22"

DIMENSIONS

Height: 19-1/2"

Length: 69-1/4"

Shipping Weight: 293 lbs.

Weight: 225 lbs.

Width: 50"

GENERAL

Type: PTO

PTO

PTO Speed: 540 rpm

Tractor Requirements: Category 1, (45HP maximum)

TOWING

Max Reach (from Center of Tractor): 63" from PTO shaft to cord tip

Maximum Recommended Deflection: 15"
