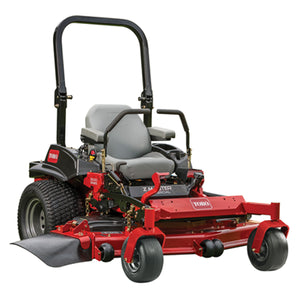

2022 Toro 3000 Series 52"(132 cm) 24.5 HP 852cc (74949)

SPECIFICATIONS

• Engine24.5 hp (18.3 kW) Kawasaki® FX751V V-Twin 852cc
• Cutting Width132.1 cm
• Drive Tyres23" x 9.5" - 12" Turf Master
• Caster Tyres13" x 6.5" - 6", smooth tread, pneumatic.
• Fuel Capacity30.3 Litres
• Maximum Forward Speed13.6 km/h
• Deck MaterialTURBO FORCE® 7-gauge high-strength steel with bull-nose front bumper
• Height of Cut1.0" - 5.5"
• Deck TypeSide discharge tools adjustable baffle
• Rubber Discharge ChuteStandard
• Spindle Housing9" diameter cast iron
• Spindle BearingsMaintenance-free ball bearings
• Blades0.6 cm thick heat-treated steel
• Blade Tip Speed18,300+ ft/min
• Carrier Frame Construction3" x 1.5" x 10 gauge
• Warranty*5 years/1200 hours limited warranty and 5 years/1200 hours spindle limited warranty
• *See your certified Toro dealer for full details on warranties.

FEATURES

• Exclusive TURBO FORCE® Deck
• Rugged, 7-gauge high-strength steel deck constructed to handle extreme conditions, delivering the ultimate in cutting performance.
• Maintenance-Free Tough Spindle Assemblies
• A robust cast iron housing with a solid 1 inch steel spindle shaft absorbs impact loads and distributes them across a broader area of the deck shell.
• Twin Unitised Pump and Wheel Motor Transmissions
• Proven commercial hydraulic components while eliminating hoses and other potential leak points. You’ll get a smoother, faster response while enjoying an even more reliable machine.
• Deluxe Suspension Seat
• Deluxe suspension seat features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue.
• Traction and Performance
• Industry-leading traction and control - low centre of gravity enhances hillside traction and stability for superior handling on hills.
• Folding Rollover Protection System
• A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.
• Rugged Frame
• A commercial-grade carrier frame, constructed of 3" x 1.5" tubular steel, supports the cutting deck and stands up to the rigors of professional use.
• Rubber Discharge Chute
• High performance rubber discharge chute allows for close trimming without damaging chute or landscape structures. Patented design provides exceptional clipping dispersion.
